AfterDark. Project ClayX x Black Modernize - Handhartilo Series for I-O Data Soundgenic HDL-RA2HF NAS

電磁干擾(EMI)在設計高精度的Audiophile NAS時,以盡量減少對射頻干擾和其他形式的EMI的影響。材料選擇,物理佈局,接地實踐,並且數碼線設計都已被指定,以減少電磁場對本機性能的影響。然而,與此同時,店主的主要目標是在正常的家庭環境中準確地再現錄音室錄製的音樂.

為什麼I-O Data Soundgenic HDL-RA2HF NAS需要線性電源?
  • 注意到一般Switching電源可能產生噪音, 干擾其他電源. 注意到一般黑色DC 電源線, 完全不使用EMI屏蔽是很難達到發燒音響標準, 因為這個瓶頸問題, 信號經過NAS無法實現他們的最佳表現.
  • 店主的主要目標是用發燒音響材料, 設計一條音響專用的DC電源線和特製線性電源LPS, 提高電源性能. 提高信號恢復, 音樂密度或提高發燒NAS音樂信號提取, 因此推出高級版"Black Modernize - Elite Series"
為什麼I-O Data Soundgenic HDL-RA2HF NAS需要Lan Isolator?
  • 特點是用單獨2組光纖電纜信號線, 來運行平衡時鐘數字信號, 1組線是用於數據傳輸, 另外1組是線數據接收, 這是保護數據完整性並避免EMI互相干擾。由於光纖的物理隔離,信噪比顯著消除。數字信號更加黑,帶豐富細節.
  • 另外LAN Isolator接頭添加高端工業級Exotic EMI屏蔽(KEMET Corporation)進一步避免EMI/RF signal.
I-O Data Soundgenic HDL-RA2HF NAS VS I-O Data fidata HFAS1-H40 NAS旗艦產品?
  • 店主認為改善音質的最佳方法必需, 重新設計所有內部部件鑲嵌,並使用更好的屏蔽信號線,重新設計線性電源,內部電線選材, 反諧振抗震碳纖維材料來設計機架.
  • 然而,在這幾天店主收到一個高手請求, “請將LAN隔離器放在NAS內部,性能可能會達到I-O Data fidata旗艦產品 .” 同時也改善音質, 之后可以同旗艦一比高下.
  • I-O Data Soundgenic HDL-RA2HF NAS Vs I-O Data fidata HFAS1-H40 NAS旗艦產品

因此店主開始Project ClayX 新產品系列: Black Modernize – Handhartilo Series.

在未來的幾個月裡,店主將會推出一系列Handhartilo Series 新產品。

AfterDark. x 音響夜冷店 2018推出新產品: AfterDark. Project ClayX x Black Modernize - Handhartilo Series for I-O Data Soundgenic HDL-RA2HF NAS

店主設計這Black Modernize - Handhartilo Series用於 Audiophile NAS on I-O Data Soundgenic HDL-RA2HF

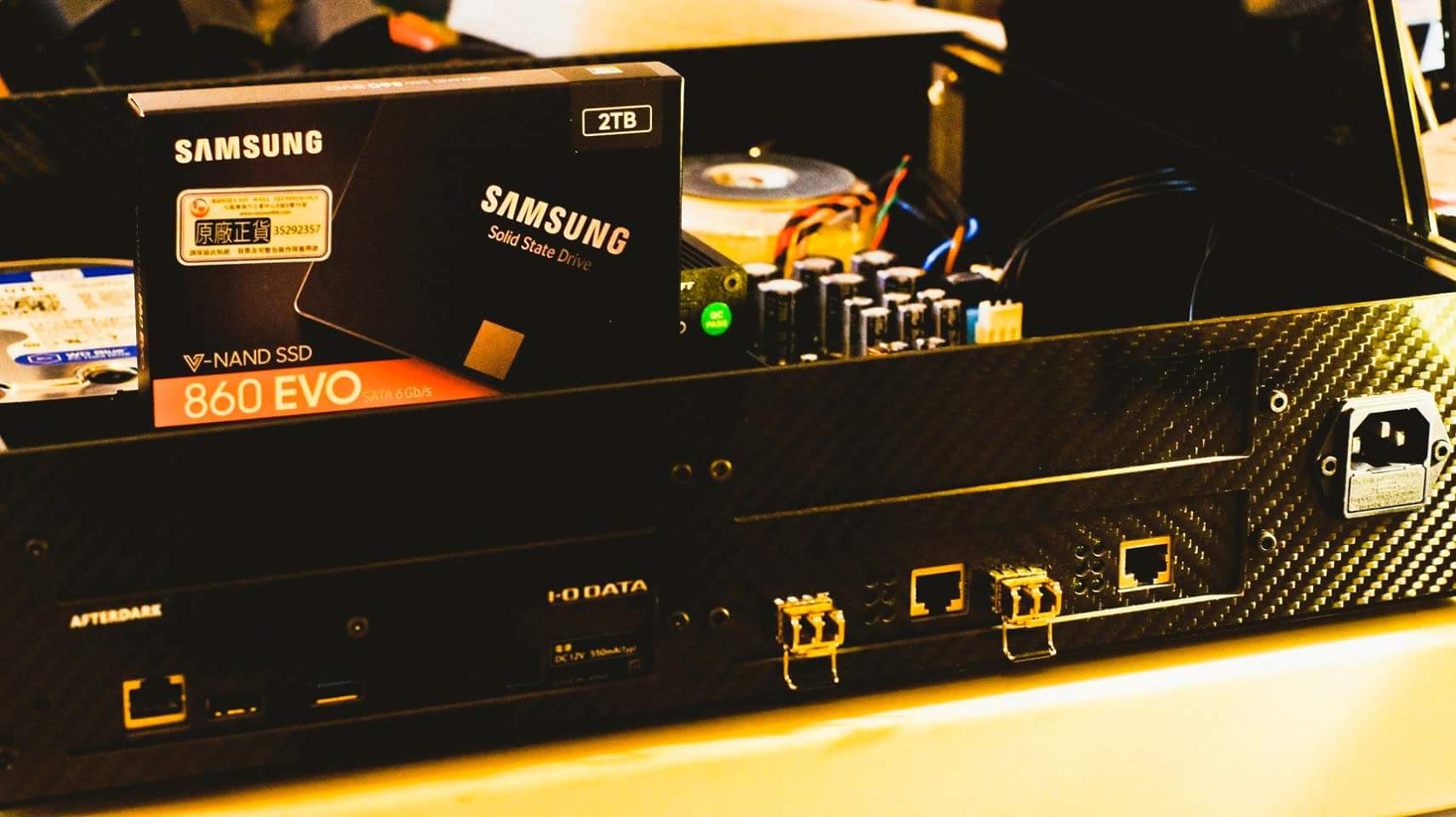

Handhartilo Series 新產品原型照片, 和一些研發照片

為什麼選擇碳纖維屏蔽?
碳纖維起源於航空材料,但隨著這種材料的使用越來越廣泛,碳纖維屏蔽已經成功地解決電子設備與EMI(電磁干擾), 成功用碳纖維複合屏蔽方式應用於發燒音響NAS.

什麼可以通過“Black Modernize - Handhartilo Series”升級?
  • AfterDark. ClayX SATA III 6Gbps (CFS) Cable
  • AfterDark. ClayX SATA (CFS) Power Cable
  • AfterDark. Black Constellation (CFS) Optical Fiber Audio Lan Isolator Performance Modules:
    -Full Duplex 1000M Audio Grade Lan Isolator
    -2 x CISCO SFP 10G Server Grade Optical Modules for Critical Mission Application
    -Commscope OM4 Server Grade LC/LC Optical Fiber Cable
  • Black Modernize Carbon Fiber Anti-Resonance Plate x 4
  • Black Modernize Carbon Fiber Connection Interface on Power IEC socket at the back plate
  • Black Modernize 12V Linear Power Supply for I-O Data Soundgenic HDL-RA2HF
  • Black Modernize 5V Linear Power Supply for Black Constellation (CFS) Optical Fiber Lan Isolator
  • AfterDark. Performance Tweak with EMI Shielding on all USB / Lan /SATA III connectors
  • AfterDark. Performance Tweak with WA Quantum Chip onto CPU on I-O Data Soundgenic HDL-RA2HF
  • AfterDark Black Modernize Carbon Fiber Anti-Resonance Enclosure Case for Audiophile
  • AfterDark. Project ClayX Black Mountain Carbon Fiber AudiophileMAT for HDD/SSD
什麼可以通過 “Black Modernize - Elite Series” 升級?
  • Black Modernize Carbon Fiber Anti-Resonance Back Plate
  • AfterDark. Project ClayX Progressive (CFS) Black Element Duelund 0.8m DC Cable Special Edition for I-O Data Soundgenic HDL-RA2HF,
  • Audio Note Ag solder on rarely made Schurter DC Plug for NAS's DC connection and gold plated Oyaida 2.1MM Plug for LPS.
  • Black Modernize 12V Linear Power Supply for I-O Data Soundgenic HDL-RA2HF
  • AfterDark. Performance Tweak with EMI Shielding on all USB / LAN connectors
  • AfterDark. Performance Tweak with WA Quantum Chip on I-O Data Soundgenic HDL-RA2HF
  • AfterDark. Project ClayX Black Mountain Carbon Fiber AudiophileMAT for HDD/SSD
Optional:
  • AfterDark. Clementine 1.82m US Power Cable
  • AfterDark. Black Lake USB Cable 1m碳纖維屏蔽 (CFS) USB數碼線
  • AfterDark. Constellation CAT7 Telegartner Jumper Cable between Lan Isolator and I-O Data Soundgenic HDL-RA2HF
  • AfterDark. Project ClayX Black Mountain Carbon Fiber AudiophileMAT for HDD/SSD
  • Extra 2 Black Modernize Carbon Fiber Anti-Resonance Expansion Module Slots for install two additional AfterDark. Black Constellation (CFS) Optical Fiber Lan Isolator Performance Module by customer request.

規範:
  • “Black Modernize”碳纖維抗共振板由厚度為6mm前/ 3mm厚碳纖維Audiophile MAT製成,用於EMI屏蔽和抗共振,適用於Audiophile NAS的關鍵任務應用。這將防止外部噪音進入USB信號導線,以及碳纖維屏蔽的高性能密度,以進一步防止噪音(RFI等)的進入,並在NAS音樂文件流應用程序期間增加穩定性。
  • “Black Modernize”連接接口升級提供最大的靈活性並通過並通過適用於音頻和光學Lan隔離器的專用LAN / USB輸入來增強NAS噪聲隔離性能,以便進行發燒友音頻連接。
  • AfterDark. Black Constellation(CFS)Optical Lan Isolator,此光模隔離器接口升級為CISCO服務器級10G SFP光模塊和商用級Commscope LC/LC 光纖線,以提供最佳的數據傳輸,“誤碼率更低” 以提供最佳音頻性能。獨立的線性電源用於提供最佳的音頻性能。高分辨率音頻的細節和聲場將顯著提高。
  • 所有來自I-O Data Soundgenic HDL-RA2HF的重要零件, USB/LAN均放置了EMI Shielding ,其他性能升級包括重新隔離HDD / SSD以避免HDD與主板之間的EMI和振動干擾。
  • HDD / SSD的防振模塊,適當放置了防震材料用於固定HDD / SSD,並消除與HDD和機箱的振動接觸。氣流和熱量分散在這個特殊設計的模塊之間的空間。
  • AfterDark. Project ClayX SATA III和SATA電源線,具有EMI屏蔽性能,並具有適當的碳纖維屏蔽(CFS)技術和音頻應用。
  • 所有USB/ LAN 接頭添加高端工業級Exotic EMI屏蔽(KEMET Corporation)進一步避免EMI/RF signal.
  • 獨立“Black Modernize” 12V / 5V線性電源可消除EMI干擾,兩者都配備EMI濾波設計.
  • 特製的12V變壓器是Toroidal isolating transformer由BLOCK-TRAFO.DE在德國製造。為NAS提供更穩定的發燒級電源。
  • 用於連接I-O Data Soundgenic HDL-RA2HF的內部電源線都是用上Duelund Silver Cable X Audio Note Ag Solder
  • 在連接板上放置了額外的抗吸收材料,以消除信號噪音和更好的分離,以避免關鍵任務NAS應用程序產生振動干擾。
  • “Carbonized Screw”用於固定Audiophile NAS Black Modernize 碳纖維反共振板上的位置。
  • AfterDark在香港製造的手工製品。
Specification:
  • Black Modernize Carbon Fiber Anti-Resonance Plate is made of 6mm front / 3mm back thickness of Carbon Fiber Audiophile MAT for EMI shielding and Anti-Resonance for mission critical application for Audiophile NAS. The will prevent external noise from getting to the USB signal conductors, and the high performance density of Carbon Fiber Shield to further prevent the ingress of noise (RFI, etc.) and increase stabilization during NAS Music File streaming application.
  • Black Modernize Connection Interface Upgrade provide maximum flexibility and enhance NAS Noise Isolated performance with propriety LAN / USB input for Audio and Optical Lan Isolator for audiophile audio connection.
  • AfterDark. Black Constellation (CFS) Optical Fiber Audio Lan Isolator Performance Modules, this Lan Isolator interface is upgraded with 10G SFP CISCO Server Grade Optical Module and Commercial Grade Commscope LC/LC Optical Fiber Cable to provide the best data transfer with much “less error rate” to provide the best audio performance for Lan Isolation application. The separate Linear Power Supply was used to provide the best audio performance with less signal to noise background. The micro details and soundstage on Hi-Res Audio will improves significantly.
  • All of the original parts from I-O Data Soundgenic HDL-RA2HF is maintained, with others performance upgrade including the re-allocation of HDD /SSD to avoid EMI and vibration interference between the drive and the main motherboard.
  • Anti-Vibration Module for HDD/SSD, propriety Anti-shock material was designed for holding the HDD/SSD and eliminate the vibration contact with the HDD and the enclosure case. The airflow and heat was dispersed around the air space in between this special designed module.
  • AfterDark. Project ClayX SATA III and SATA Power Cables for Audiophile NAS, with EMI shielding  performance with propriety Carbon Fiber Shielding (CFS) Technology and audio application.
  • Independent Black Modernize 12V / 5V Linear Power Supply (LPS) is to eliminate the EMI interference and provide more stable audiophile grade power supply for NAS.
  • Internal DC power cable to connect I-O Data motherboard is from Duelund Silver Cable with Audio Note Ag Solder
  • Extra anti-absorber material was placed on the connection board, to eliminate the signal noise and better separation to avoid vibration interference for mission critical NAS application.
  • The “Carbonized Screw” was used to fix the position on Black Modernize Carbon Fiber Anti-Resonance Plate for Audiophile NAS.
  • All hand Made in Hong Kong by AfterDark.
