AfterDark. Project ClayX Roon KARMANN Server x Handhartilo Series
Music Server for Roon
電磁干擾(EMI)在設計高精度的發燒音響Roon KARMANN Server時,以盡量減少對射頻干擾和其他形式的EMI的影響。材料選擇,物理佈局,接地實踐,並且數碼線設計都已被指定,以減少電磁場對本機性能的影響。然而,與此同時,店主的主要目標是在正常的家庭環境中準確地再現錄音室錄製的音樂.
AfterDark. x 音響夜冷店 2021推出新產品: Roon KARMANN Server.
店主設計這Roon KARMANN Server用於連接 AfterDark. Rosanna Network Bridge or any Roon Ready network players.
為什麼選擇碳纖維屏蔽?
碳纖維起源於航空材料,但隨著這種材料的使用越來越廣泛,碳纖維屏蔽已經成功地解決電子設備與EMI(電磁干擾), 成功用碳纖維複合屏蔽方式應用於發燒音響Roon KARMANN Server.
Roon KARMANN Music Server設計特點?
-
內置高品質AfterDark. Black Modernize Linear Power Supply (LPS)線性電源供電變壓器, 使用德國製造的BLOCK.DE環形變壓器,
- 店主這次特別使用重新設計重量和共振設計, 採用碳纖維外殼,
- 應用CPU超頻發燒友, 通常使用的特製銅被動冷卻系統, 並使用商用特殊散熱材料, 輕鬆實現高性能Intel i7 Quad Core的全部潛力.
- 最新Intel i10 Quad Core 8 Threads (8th Generation Intel Core i7 Processors), Base Frequency 1.60GHz, Max Turbo Frequency 4.90GHz無痛升頻所有音頻格式44.1至DSD格式
- 發燒音響等級: Samsung M.2 512G SSD NVME for ROON OS (Read: 7000M/s, White: 5000M/s) 無痛全速處理存儲庫超過30,000張專輯(400,000首曲目)
- 最高規格: Micron 32GB DDR4 2666 RAM (34.1 GB/s) 無痛全速處理存儲庫超過30,000張專輯(400,000首曲目)
- 店主顧及過Roon顧客對音響級Roon Server的需求, 以上規格已經可以升頻所有音頻格式至DSD格式, 無需擔心硬件規格問題.
- 所有硬件設計均基於Roon Nucleus規範,店主這次將全部硬件升級來設計Roon Server。換句話說,如果Roon Server OS上有升級,AfterDark. Momusi Roon Server可以自動執行所有更新和補丁。無需擔心軟件升級問題.
- Roon Server串流軟件, 支持Tidal串流, 支持MQA格式播放.
- 所有Roon Server軟件都預加載並安裝,無需用戶進行調整。 即插即用設計.
-
內置光纖網絡隔離器 (AfterDark. Project ClayX Constellation Lan Isolator Upgrade Module),可以進一步減少網絡噪音,進一步提高Roon串流音質.
-
一體化設計, 內置音響級線性電源 + 高規格音響級Roon Server + 音響級光纖網絡隔離器
Core Specification:
- Intel i7 Gen10 processor Quad Core 8 Threads (Base Frequency 1.80GHz, Max Turbo Frequency 4.90GHz) 8M Cache
- Mircon 32GB DDR4 2666 RAM (34.1 GB/s) (Dual Channels)
- Samsung 512GB OS M.2 NVMe PCIE 4.0 SSD (Read: 7000M/s, White: 5000M/s) - Preinstalled with Roon Core Server
- Project ClayX Black Modernize Linear Power Supply
- Project ClayX Triple Crown Internal DC Cable x Duelund Silver terminated with Audio Note silver solder
- USB 3.0 x 2
- Type-C USB 3.1 x 1
- HDMI x 1 / Display Port x 1
- Gigabit Ethernet LAN x 1
- Intel 2.4G + 5G WiFi + Bluetooth 4.0
- 1 Extra SATA SSD (Samsung EVO 870 2TB or 4TB SSD) or 18TB Helium 10 HDD (optional). Drives of any storage capacity are supported,
- Over 30,000 albums (400,000 tracks)
- More than 6 simultaneous zones
- All DSP functions available.
Roon KARMANN Server support DSP function:
- MQA Software Decoding
- Parametric and Graphic EQ
- SoX high-quality resampling/ Upsampling
- Crossfeed for Headphones
- Auto-shuffle for random play
- Custom Radio Station feature
- Audio Input/Output Routing
- WiFi Access Point (AP) Mode
- Samba scan for easy NAS connect
KARMANN是您的Roon音樂系統的中心。這是管家和大腦,照顧你生活中的音樂。使用KARMANN,Roon管理您的所有音樂 - 硬盤驅動器,NAS和流媒體內容 - 並允許您在家中的所有音頻設備上播放它。KARMANN是一種高規格音響級運行Roon的方法。
只需將KARMANN插入您的網絡,連接您的硬盤,下載Roon遠程應用程序(iOS,Android,macOS,Windows),您就可以使用各種音頻設備播放音樂,包括AirPlay,Sonos,Roon Ready, Squeezebox,或我們著名的AfterDark. Rosanna Network Bridge x Roon or 連接Denafrips Terminator R2R DAC。
除了是一款功能強大,無風扇的音樂服務器之外,KARMANN的獨特之處在於它由Roon OS提供支持 一種快速輕巧的操作系統,只需一件事就可以完成:瀏覽和播放音樂。 Roon是一個多房間,多用戶網絡音頻平台,專為嚴格的音響發燒友標準而設計,因此它提供了完美的播放,DSD和PCM上採樣,多聲道播放和信號路徑顯示等功能。
Roon KARMANN配備i7 Gen10 Quad Core 8 Threads Intel 處理器,32GB RAM和512GB OS M.2 SSD。它採用碳纖維外殼,配有Roon定制的操作系統。用戶可以將其指向NAS,掛接USB硬盤驅動器,或在內部硬盤驅動器安裝中安裝SSD或HDD。額外的功率允許系統處理更大的音樂庫和更大的多房間設置。
ROON核心
KARMANN配備Intel 最新的i7 Gen 10處理器,可作為基於NAS或USB驅動器的音樂庫的Roon Server Core充當您的網絡。 Roon還可以從您的Tidal帳戶流式傳輸,並將其全部提供給您擁有的任何Roon端點。 Roon圍繞Intel NUC主板構建了一個基於定制的操作系統。KARMANN採用特殊碳纖維外殼,無風扇運行,因此如果您想通過USB連接到DAC,可以使用Hi-Fi設備進行放置
Roon Core僅需6-10秒即可啟動; Intel i7處理器,帶有用於操作系統的集成SSD,以及為本地存儲添加SSD或HDD內置硬盤的選項。您還可以選擇通過USB或NAS音樂存儲進行連接,HDMI輸出支持使用任何網絡Roon Ready設備進行多聲道播放。
Roon KARMANN是操作背後的大腦並管理您的音樂收藏,它使用Roon數據庫中的增強信息構建了一個互聯的數字圖書館。您可以在所有設備上使用Roon控制器應用程序瀏覽和播放音樂; Mac,Windows PC,iPad,iPhone或Android設備。 Roon流淌著您擁有的所有音頻裝備,讓它們在一起玩得很開心。
*Roon KARMANN需要購買Roon年度會員資格或Roon終身會員資格。
Roon KARMANN Server的聲音風格?
- 低音更加精緻, 中高音更甜美, 細節豐富與高雅微動態分析風格, 背景更加黑,
為什麼需要內置光纖網絡隔離器升級?
-
因為確保roon能夠提供最高質量的串流Hi-Res聲音. 此升級不能低估.
- Black Constellation (CFS) 光纖音頻Lan隔離器性能模塊:
-
Full Duplex 1000M音頻級Lan隔離器
-
2個用於服務器級的CISCO SFP 10G SEP光模塊 (單獨2組)
-
Commscope服務器級光纖線
Black Modernize Handhartilo Series?
- Black Modernize碳纖維板上抗共振板
- Black Modernize碳纖維IEC電源插座連接接口
- Black Modernize 線性電源
-
LAN/SFP接頭添加高端工業級Exotic EMI屏蔽(KEMET Corporation)進一步避免EMI/RF signal

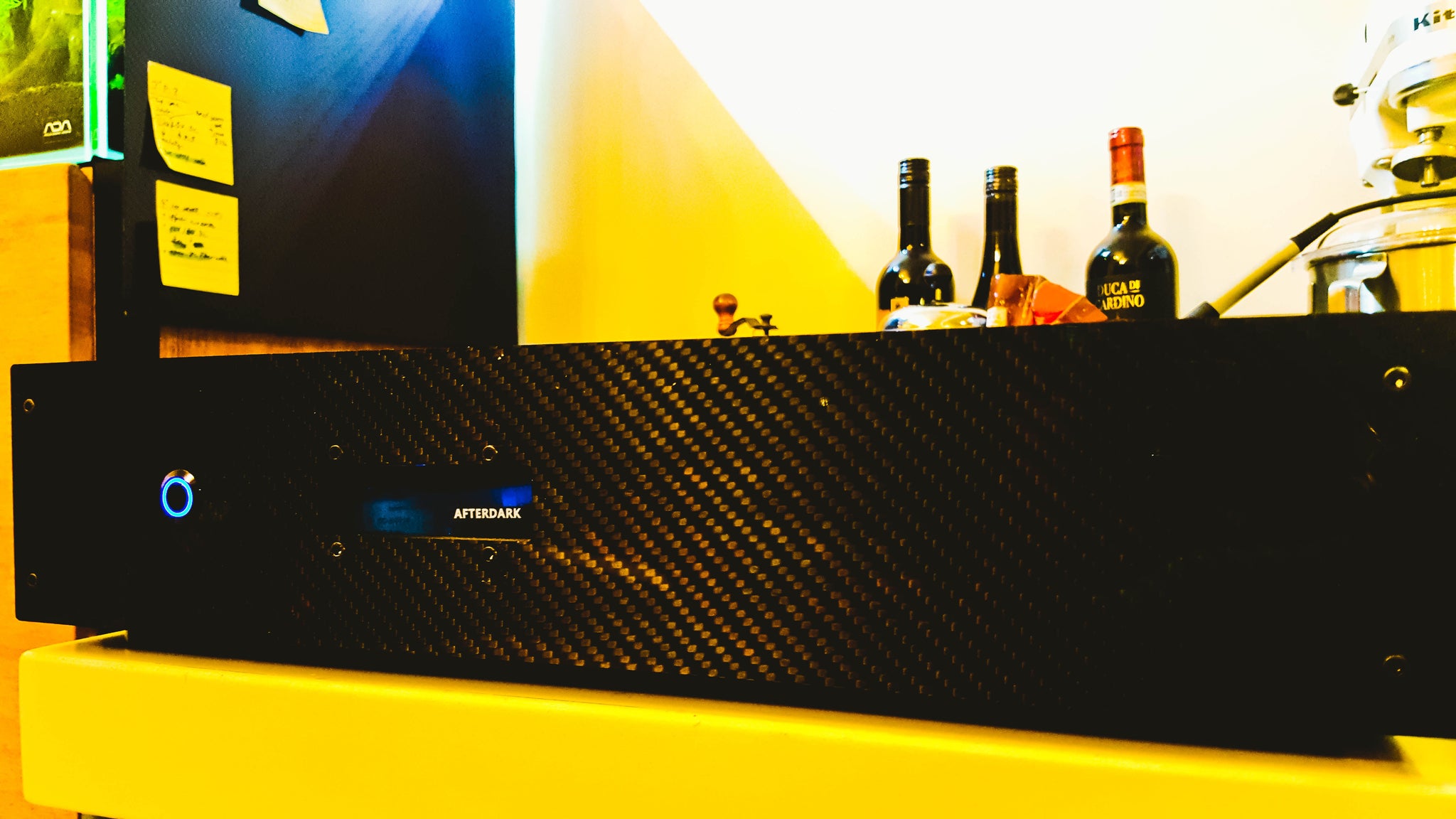

- Black Modernize碳纖維發燒音響外殼
Black Modernize Optical SFP Lan Isolator Performance Module?
- Full Duplex 1000M Audio Grade Lan Isolator
- 2 x Finisar SFP Industrial Grade Optical Modules for Audio Critical Mission Application
- Commscope Single Mode Server Grade Optical Fiber Cable
- “Sound Tuning” mod to replace Audio Note KANSEI Capacitor on Isolator Network Modules
- Black Modernize Carbon Fiber Anti-Resonance Plate
- Black Modernize Connection Interface on Power IEC socket at the back plate
- Black Modernize 12V Linear Power Supply for Black Constellation (CFS) Optical Fiber Lan Isolator
- Performance Tweak with EMI Shielding on all connectors
- AfterDark Black Modernize Carbon Fiber Anti-Resonance Enclosure Case for Audiophile
Black Modernize光隔性能模组:
-
“Black Modernize”碳纖維抗共振板由厚度為6mm前/ 3mm厚碳纖維Audiophile MAT製成,用於EMI屏蔽和抗共振,適用於Audiophile Network Switch的應用。這將防止外部噪音進入LAN信號導線,以及碳纖維屏蔽的高性能密度,以進一步防止噪音(RFI等)的進入.
-
“Black Modernize”連接接口升級提供了最大的靈活性,並通過適合“音頻的LAN輸入”和適用於發燒友音頻連接的“光學Lan隔離器”來增強噪聲隔離性能。以便發燒友連接。
-
Black Constellation(CFS)光纖音頻Lan隔離器性能模塊,此Lan隔離器接口升級為10G SFP CISCO服務器級光模塊和商用級Commscope OM4光纖電纜,以提供最佳的數據傳輸,“誤碼率更低” Lan Isolation應用程序的最佳音頻性能。使用單獨的線性電源,以較低的信噪比背景提供最佳的音頻性能。高分辨率音頻的細節和聲場將顯著提高。
-
Black Constellation(CFS)Optical Lan Isolator,此光模隔離器接口升級為CISCO服務器級10G SFP光模塊和商用級Commscope OM4光纖線,以提供最佳的數據傳輸,“誤碼率更低” 以提供最佳音頻性能。獨立的線性電源用於提供最佳的音頻性能。高分辨率音頻的細節和聲場將顯著提高。
- Furutech FI-06 NCF IEC插座將配備增強的音樂表現力和導電率。
- Project ClayX Black Element Duelund電纜將用於內部電源線.
- 獨立的Black Modernize線性電源供電, 將消除EMI干擾,並為高發燒級Roon Core Server提供更穩定的燒級電源。
- 在連接板上放置了額外的抗吸收材料,以消除信號噪音和更好的分離,避免振動干擾。
-
“碳化螺絲”用於固定Black Modernize碳纖維板上。
- 在香港製造的手工製品。
Handhartilo Enclosure / Modules Specification:
-
Black Modernize Carbon Fiber Anti-Resonance Plate is made of 6mm front / 3mm back thickness of Carbon Fiber Audiophile MAT for EMI shielding and Anti-Resonance for mission critical application for Audiophile Network Switch. The will prevent external noise from getting to the USB signal conductors, and the high performance density of Carbon Fiber Shield to further prevent the ingress of noise (RFI, etc.) and increase stabilization during Roon streaming application.
-
Black Modernize Connection Interface Upgrade provide maximum flexibility and enhance Noise Isolated performance with propriety “LAN input for Audio” and “Optical Lan Isolator” for audiophile audio connection.
-
Black Constellation (CFS) Optical Fiber Audio Lan Isolator Performance Modules, this Lan Isolator interface is upgraded with 10G SFP Finisar Industrial Grade Optical Module and Commercial Grade Commscope Single Mode Optical Fiber Cable to provide the best data transfer with much “less error rate” to provide the best audio performance for Lan Isolation application. The separate Linear Power Supply / UPS Battery was used to provide the best audio performance with less signal to noise background. The micro details and soundstage on Hi-Res Audio will improves significantly.
-
Furutech FI-06 NCF IEC Roradium outlet will be equipped for enhanced music presentation and maximized power conductivity.
-
Project ClayX Triple Crown Duelund Silver Cable will be used for internal DC power wire.
-
Black Modernize Linear Power Supply will be equipped to eliminate the EMI interference and provide more stable audiophile grade power supply for audiophile network switch.
-
Extra anti EMI-absorber material was placed on the connection board, to eliminate the signal noise and better separation to avoid vibration interference for mission critical Audiophile Network Switch application.
-
The “Carbonized Screw” was used to fix the position on Black Modernize Carbon Fiber Anti-Resonance Plate for Audiophile NAS.
-
All hand made by AfterDark.
Handhartilo外殼/性能模塊規格:
-
Black Modernize碳纖維反共振板由6毫米前/ 3毫米厚度的碳纖維AudiophileMAT製成,用於EMI屏蔽和反共振,適用於發燒級網絡交換機的關鍵任務應用。這將防止外部噪聲進入USB/LAN/CPU信號導體,以及碳纖維屏蔽的高性能密度,以進一步防止噪聲(RFI等)的進入並增加Roon Server的穩定性。
-
Black Modernize碳纖維連接接口升級提供最大的靈活性並增強噪聲隔離性能,適用於“用於音頻的LAN輸入”和用於高保真音頻連接的“光學Lan隔離器”。
-
Project ClayX Constellation Lan Isolator 光纖隔離器性能模塊,此光纖隔離器接口升級為10G SFP Finisar 服務器級光纖模塊和商用級Commscope光纖電纜,提供最佳數據傳輸,提供“錯誤率更低”。獨立的線性電源用於提供最佳的音頻性能和更低的信噪比背景。音樂文件流應用期間的微觀細節和聲場將大大改善。
-
Furutech FI-06 NCF IEC Roradium 插座配備, 將增強音樂呈現和改善電導率。
-
Project ClayX Triple Crown Duelund Silver Cable 於內部電源線。
-
將配備獨立的Black Modernize線性電源,以消除EMI干擾,並為發燒友網絡交換機提供更穩定的發燒級電源。
-
在連接板上放置了額外的抗吸收材料,以消除信號噪聲和更好的分離,消除主機板, 產生的振動干擾。
-
“碳化螺絲”用於固定Roon KAMANN主機板. Black Modernize碳纖維反共振板固定位置
-
全部由AfterDark手工製作。
