AfterDark. Diretta DDS RS6 PRO

The new development of Diretta DDS RS6 PRO

The Diretta DDS RS6 PRO is developed to meet with demand and requirements on intergrate the best components into one standard chassis, build and design according to our latest Mansory standard.

The motherboard will be install on module card made with 2mm carbon fiber for easy maintanance and upgrade for future. The module will allow us for more customisation and faster assmebly on new products.

What is special for RS6 PRO?

• Build in Mansory R8 LPS, isolated output for 5V and 12V for digital modules

• Adds on Digital Module can be customerise

• Extra 10M Master Clock or 44.1Mhz & 48Mhz word clock output

• Mundorf Audio Capacitor power filtering module install on Diretta Host, Diretta Target module, Giesemann Clock Sync Module.

• Carbon fiber top plate and bottom plate for mounting motherboard, power sections.

• Plus standard feature on RS6 Mini

  • https://audiophilestyle.com/forums/topic/72124-new-release-afterdark-project-clayx-karmann-diretta-dds-rs6-mini-transport/

  •

Official Diretta Developer Support

AfterDark. will provide customerise support both on hardware and software for Audiophiles. The customer is welcome to ask questions via contact us on whatsApps to provided friendly support on intial setup.

New Giesemann Clock Sync Module PRO

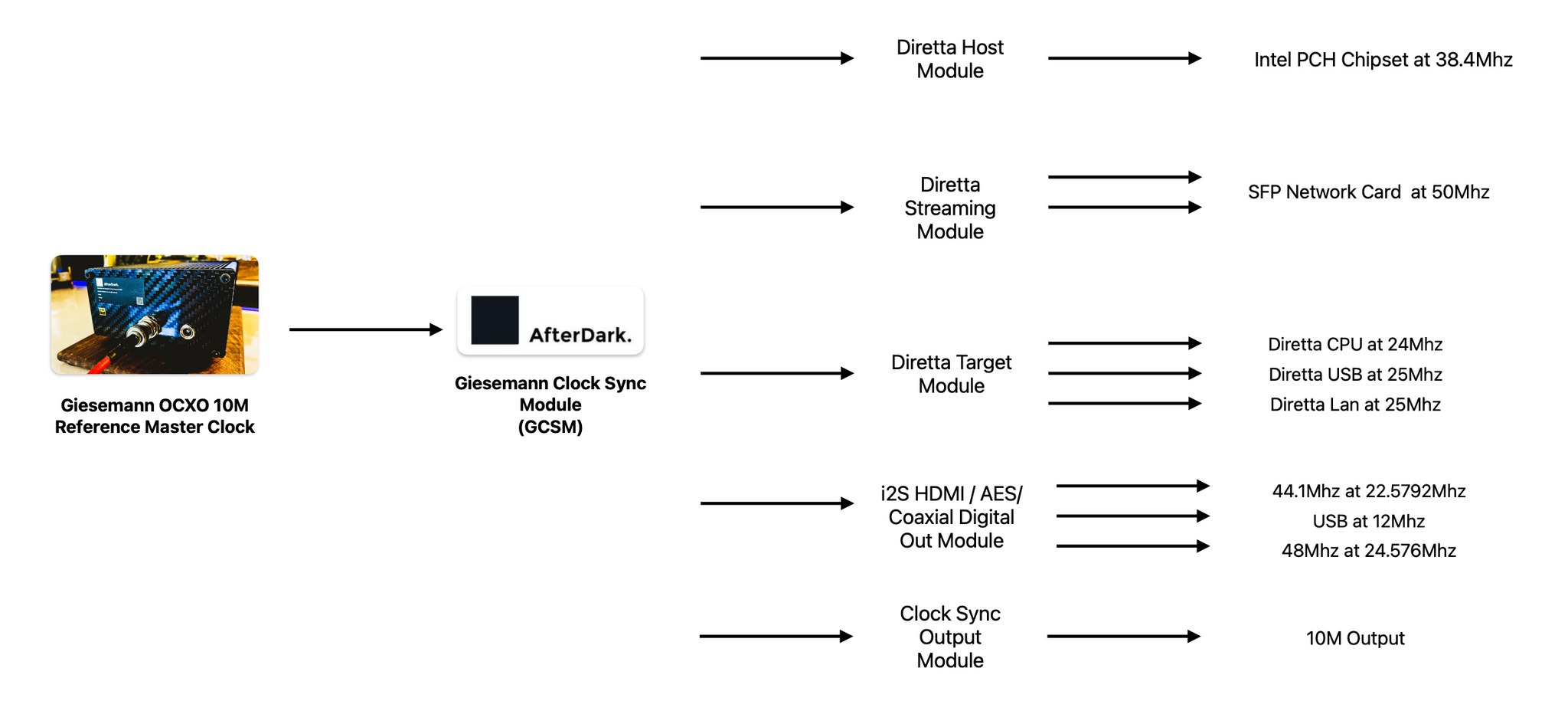

All the digital modules inside the Diretta DDS RS6 PRO, with be reclock with Giesemann Clock Sync Module (GCSM) PRO. The above picture is showing the clock sync module will generate 10 units of isolated clock signal with different frequencies across the each digitial modules for ultimate timing performance.

Thanks for developement team on the lastest Giesemann Clock Sync Module (GCSM) PRO. The lastest clock sync chips will generated lowest phase noise signal to the motherboard on both Diretta Host , Diretta Target and High Performance SFP NIC.

The GCSM PRO allows auto recovering on 10M Master Clock signal and ensure smooth music playback. While there is 10M Master Clock not avaliable, it will switch to internal clock, and once 10M Master clock is detected, the clock sync module will utilities the 10M Master clock signal automatically without customer intervention. In conclusion, the music will continue to play even there is sudden drop of 10M Master Clock signal.

The PA6 Digitial Out Module

AfterDark. handcrafts unique audiophiles digital devices, blending the finest material in the leading indudustrial supplier. Close collaboration and ultra - high audio performance components come in from partners in the USA, Italy, Germany, Japan, Liechtenstein.

Circuit board is are research and developed with teams of in house engineers. Digital Module is highly customerised, allowing low-level programming in chipset, providing mose demending audio performance for music reproduction.

The i2S HDMI can be preset to pinout for various i2s input DAC. E.g. PS Audio, Gustard, Audio-GD, SMSL, Denaflips, and Rockna.

Each digital module is tested and carefully handcrafted in Hong Kong, where excellent craftsmanship meets audio performnace for audiophile.

Chassis

Mansory Edition feature a precision engineered high quality Carbon Fiber to minimise EMI and high performance vibration dampering system applied across key componenets including Diretta motherboards, capacitor banks, and regulators.

Power Supply

Mansory Edition R8 is a dedicated ultra low noise linear power supply, combining MLytic Mundorf AG Power Capacitors active recification with 188,000uF capacitance, which has exceptional performance on sound tuning. An upgrade Furutech Rhodium IEC with high perfomance LT3041 ultra high PSRR Linear Regulator, ensure clean, stable power delivery. The external LPS will further lower the EMI noise for better music reproduction.

Master Clock

Giesemann OCXO Reference 10M Master Clock can all be used independently and are design to work with existing systems, provide single synchronization with Audiophile network switch, Audiophile DAC, Diretta DDS and HQplayer server. The Giesemann OCXO ensure the accuracy of the master clock prodvide a time domain reference for reading data, its transfer and decoding. As a result, the Master Clock could minimize jitter and ensure the improvement on sounding.

Network

Using a latest Diretta DDS Mode 3, a deeply tuned and customised Diretta mainboards and NIC. It features a next-generation board with both SFP+ optical fiber and RJ45 input, offering a maximum sound quality. Delicated Giesemann Clock Sync Module (GCSM) for generating the clock signal to mainboards, ensure ultra high signal integrity and sound optimaisation in the system.
