We are delighed to release a new designed LPS for Giesemann Master Clock and NETone switches.  The phase noise will be lower with this special LPS. The MLytic Mundorf AG Power Caps make a huge improvements on all around sounding with sensitive devices. Eg. Giesemann OCXO Master Clock, NETone Switch, EdgeRouter. This combo can make music very analog, refine and natural sounding with a lot of micro details extraction. It is hear to believe.  😊

Reviews and positive comments on Mundorf M-Lytic AG Caps:

diyAudio

The sound quality keep the same good way, more richness, more 3D sensation, more silk-like and less hardness. Very good power cap!

I replaced nichicons with the mundorfs AG and they sound much better , more transparent , neutral
while the nichicons had a darker sound

For me is the best Lytic actual on production cap. It's difficult to describe it: voices are very good, full bass & delicate treble, a clear winner.


Furutech Rhodium FI-03 IEC for highest electric contact

Neutrik SpeakON plug - Made to order for single output or dual ouputs

Which device can improve perfomance with this LPS?

• Giesemann 10M Reference Master Clock (12V)
• Wifi Router such as Netgear XR700 (12V)
• DDC such as Mutec MC3-USB (6V)
• Network Switch such as EtherREGEN, Buffalo BS-GS2016 (12V)
• Mutec REF10 NANO (15V)

What is the Voltage and rating?

• 5VDC/7A, 9VDC/5.5A, 12VDC/5A ,15V/4A, 18VDC, 19VDC/3.5A, other voltage can be customise

What is the temperature when operated?

• Thanks for the best Toroidal safety Isolating transformer Nortel, it reaches only 40 degrees when operated.
• This deviced is garantee to run 7x24 whichout any maintainances.
• The high current version will provide more buffers for demanding devices, it improves the dynamic of music and provide the stable current for audiophiles.

Why we use series of Audio Grade Capacitors?

• This version is over engineered and build with total of 18,800uF Audio Grade Capicitor
• This is to smooth out the ripples and improve the quality of currents.
• Transparant sounding and brings dynamic of music
• We belieive most Audiophile will be keen to see the Audio Grade Mundorf, it just make every tone more delicated and refine, the sounding is resolving and sounds excellent when compared.

How Long is the burn in process?

• The Audio Grade Mundorf MCAP MLYTIC AG Capacitor (Made in Germany) is well known having sweet and laid back sounding. It will sound smoother and smoother during the burn-in process.
• When we performs testing, it takes around 25 days to reach optimial stage.

Why we use Noratel Transfomers?

• They are extremely effective for reducing high frequency common mode noise.
• The isolated transformer are insulated by primary and secondary coils, and provided cleaner power for audio

What is the voltage rating ?

• 5V@7A
• 9V@5.5A
• 12V@5A
• 15V@4A
• 19V@3.5A

How many cables is provided?

• Two DC Cables with choice of 2.1mm /2.5mm/ GX16-2pins shall be inclued in the package and we know the Neutrik SpeakON plug DC cable is hard to find in market.
• One AC Cable

Is it esay to change with Audiophile fuse?

• Yes, the fuse is located under the Furutech IEC inlet.
• The fuse is equipped with Schurter Gold fuse.

What is the dimansion?

• Compact and minimist design with dimension of 13cm x 6cm x 25cm

Highlight of the AfterDark. Black Modernize Linear Power Supply:

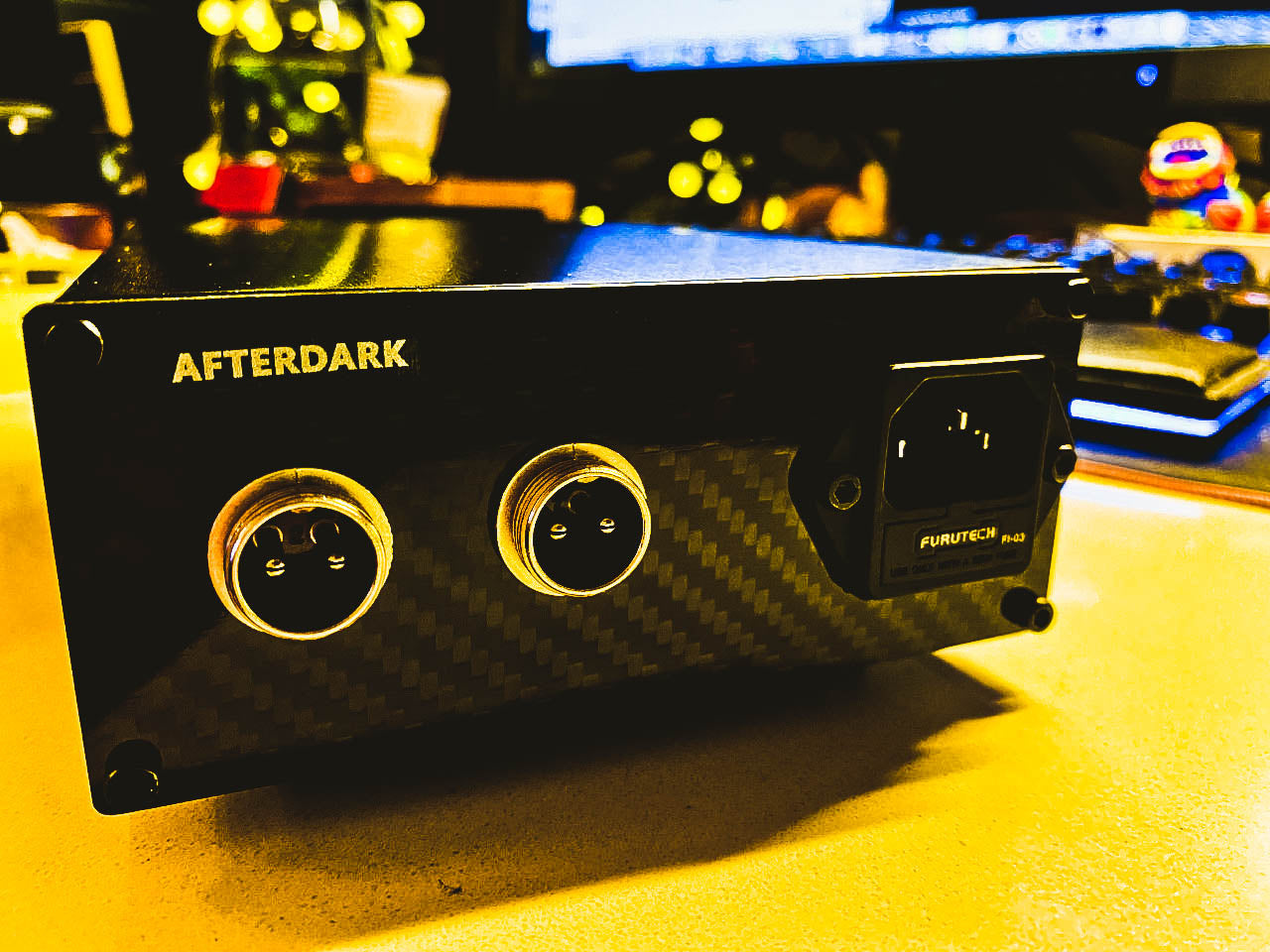

• AC Incoming: Furutech Rhodium FI-03 IEC
• Fuse: Schurter Gold Fuse
• AC Noise Filter: UK RIFA RFI Suppression Caps & Schaffner Noise Filter

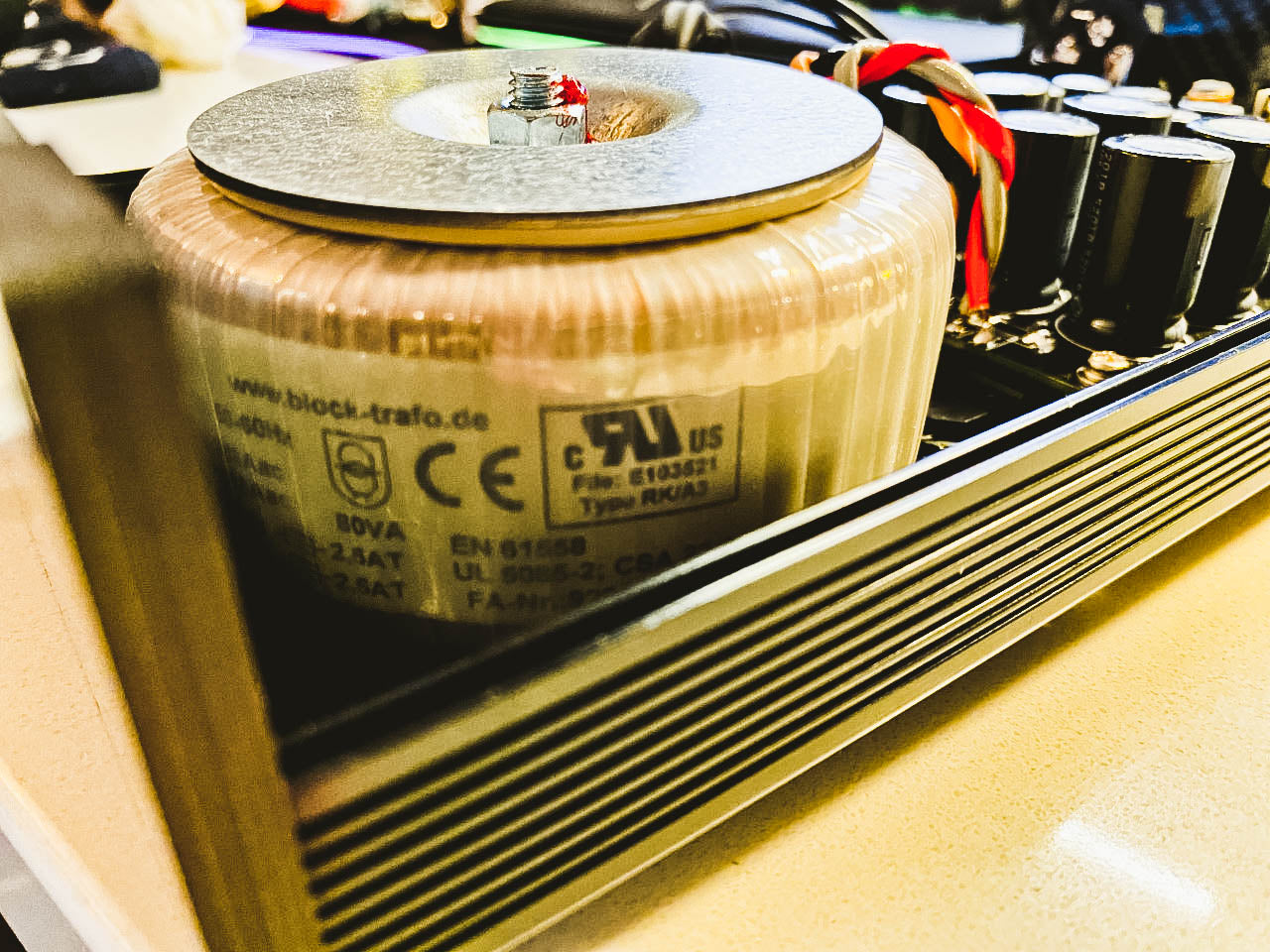

• AC Transformer:  Mulitcomp Pro 80VA by Farnell
• High Speed Rectifier with RIFA 0.1uf Bypass Caps
• Audio Grade Capacitor 4700uf 63v x 4 Reservoir Caps, total of 18,800uf !
• BC Phillips 1% Precision Resistors
• Audio Grade Mundorf MCAP MLYTIC AG Capacitor (Made in Germany)
• LT3041 x5 (5V-12V) or LT3086 x 4 (15V-24V)
• WIMA non-polar capacitor
• High Performance Schottky Diodes
• Toshiba Pass Power Transistor
• Panasonic & Vishay Tantalum Capacitor for stable acpacitance , and low leaksge current, where relaibility is crucial
• Murata X7R MLCC ceramic capacitors

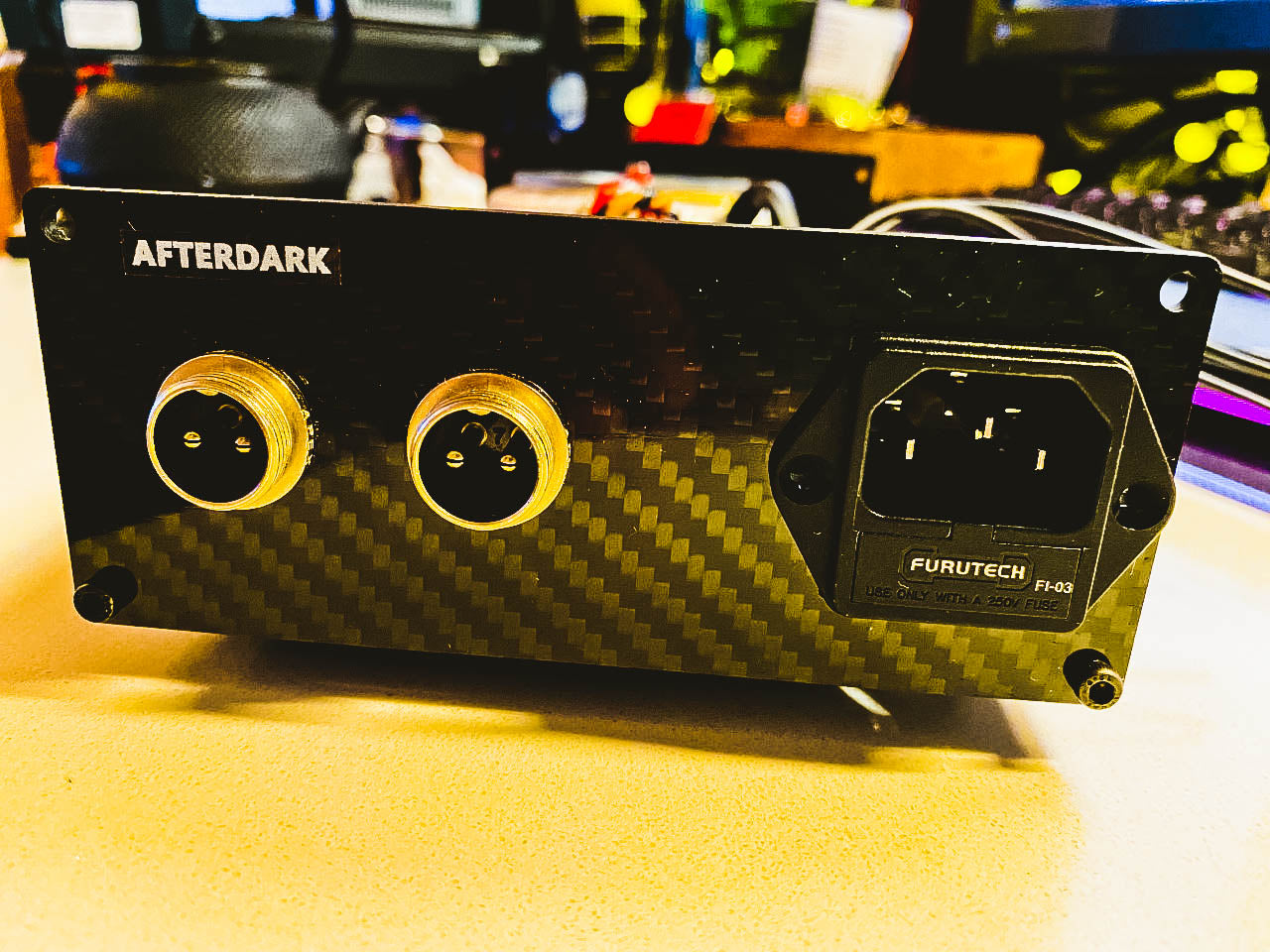

• One or Two Simultaneously Driven Voltage Output Jacks
• Choice of Neutrik SpeakON plug (1 Ouptuts) or GX16 pin2 (2 Outputs)
• Voltage Rating: 5VDC/7A, 9VDC/5.5A, 12VDC/5A , 15V/4A, 19V/3.5A, DC Custom
• 4 Layers of PCB with copper passive heatsink for sound optimisation

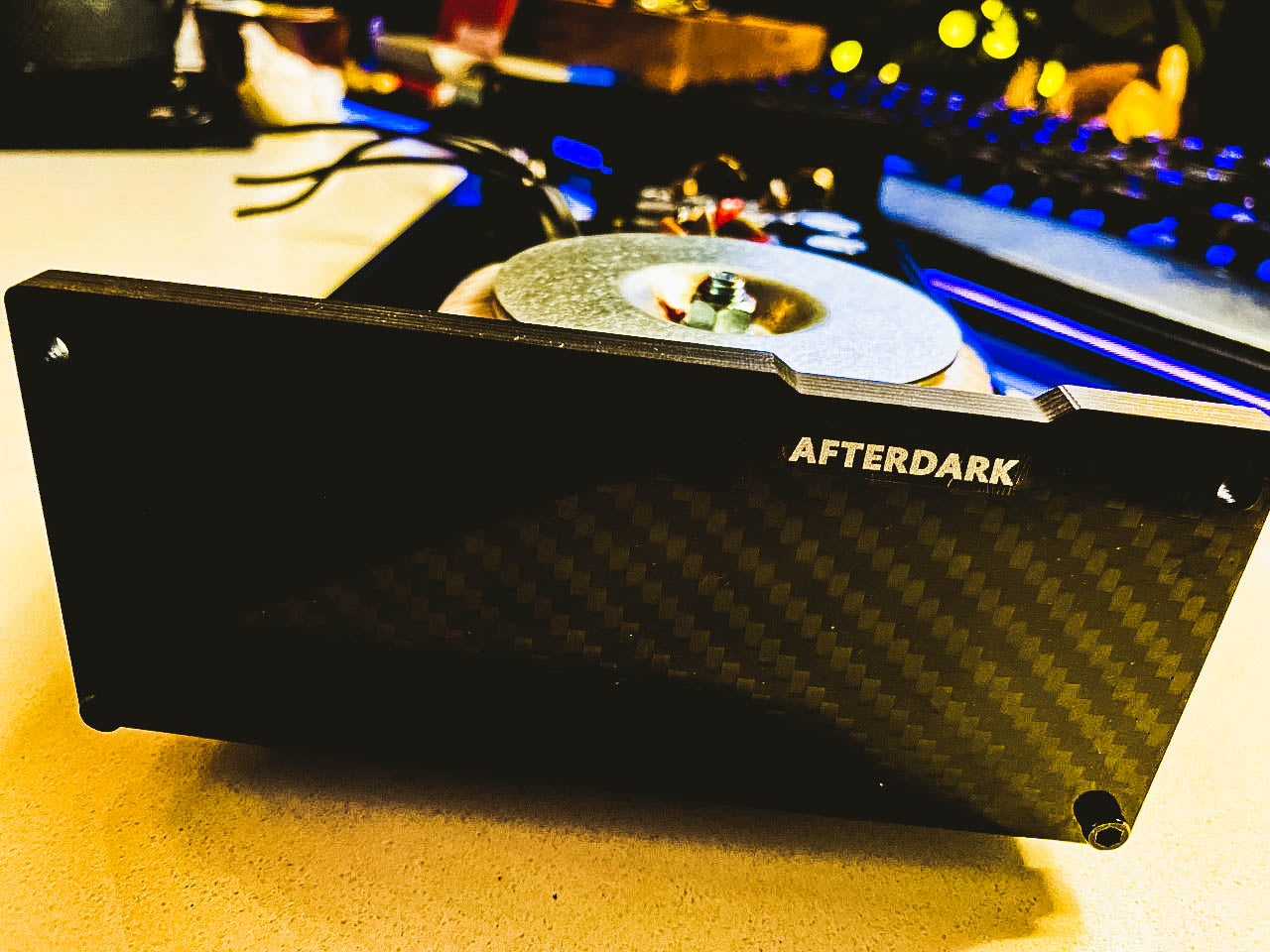

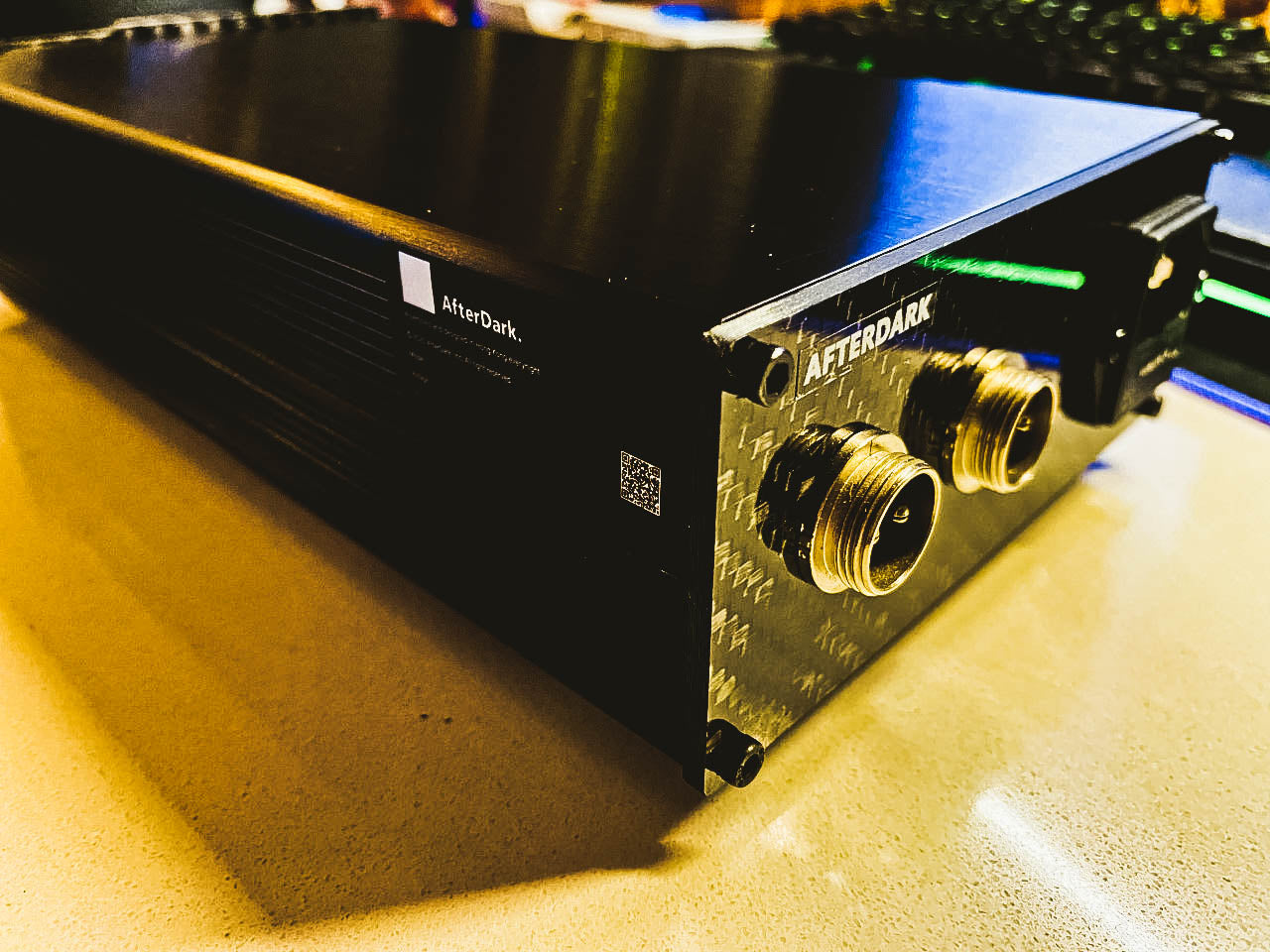

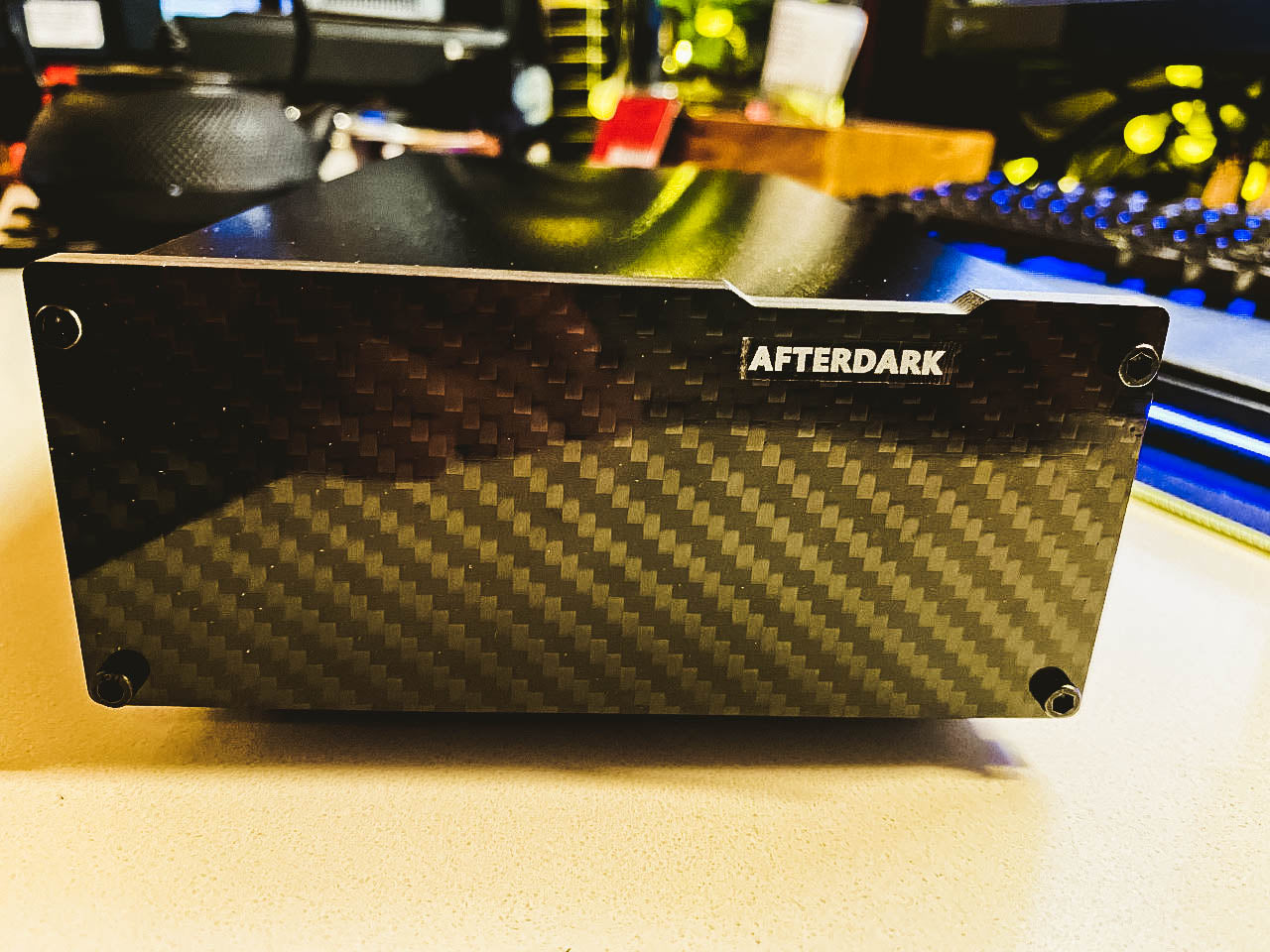

• Integrated Aluminum Heat-sink chassis, with 6mm thick Carbon Fiber front panel  / 3mm thick Carbon Fiber back panel
• Weight: 3Kg
• Diamension: 13cm x 6cm x 25cm

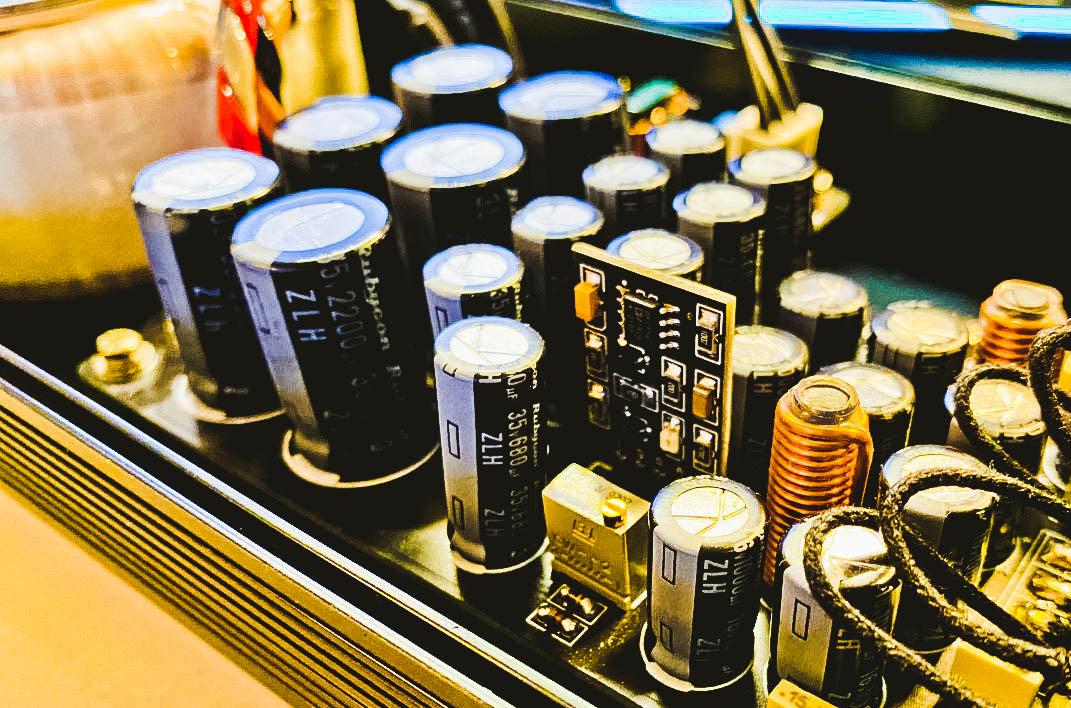

Array of 4 Mundorf MLytic AG Power Cap 4700uF 63V x 4 = Total: 18800uF sound tuning for Audiophiles

LT3041 x 5 or LT3086 x 4 power regulators . This regulator is using the latest technology with ultra stable DC output and ultra low noise.
