AfterDark. Constellation Giesemann X1 Ethernet Server Adapter

OCXO Version
Metal Backpate
DC Port Version

2 items left


AfterDark. Constellation Giesemann X1 Ethernet Server Adapter

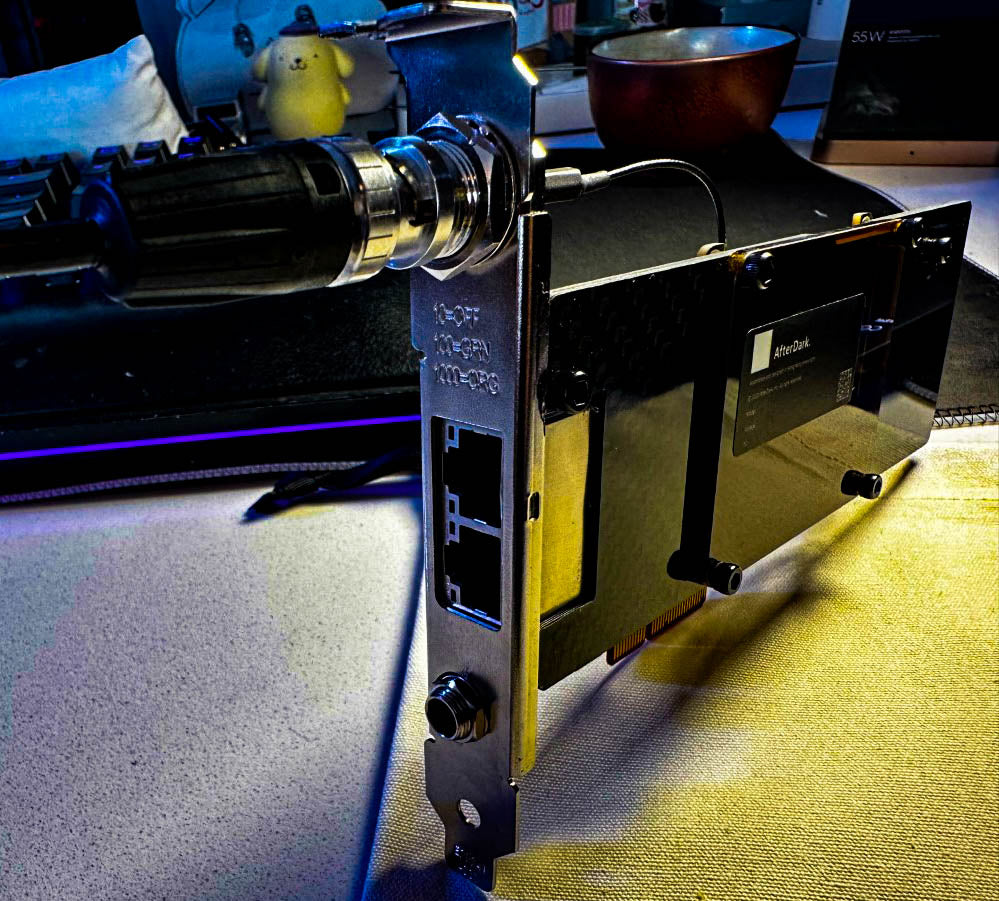

The very first Ulimate Audiophile network card which build in 10M Master Clock Sync Module for Audiophile.



The design is based on the unique material on shielding layer, selection on Carbon Fiber, the product research and development on Giesemann OCXO product since 2021. AfterDark. take a further step to design the world's first audiophile network card which can accepting 10M Master Clock input for Audiophiles who would like to paid extraordinary attention to the master clock arragements (as well as providing developed clocksync and external reference clock options for EtherREGEN) to minimize timing error to unprecedented levels.

The quality of the Network Card is crucial to deliver the optimal sounding for Music Server, which ensure the very first transfer via Network. The Constellation Giesemann is designed along with the mind that temperature perturbation, vibration shock, and electromagnetic interference (EMI) may cause some effect on high precision OCXO inside a Music Servers. The EMI niose is heavily polluted by CPU, RAM, SSD. So the ultimate solution is to separate the OCXO physically in a separate chassis if possible.

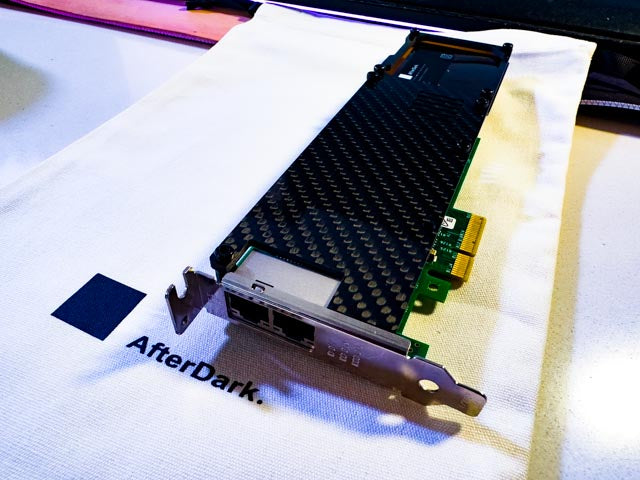

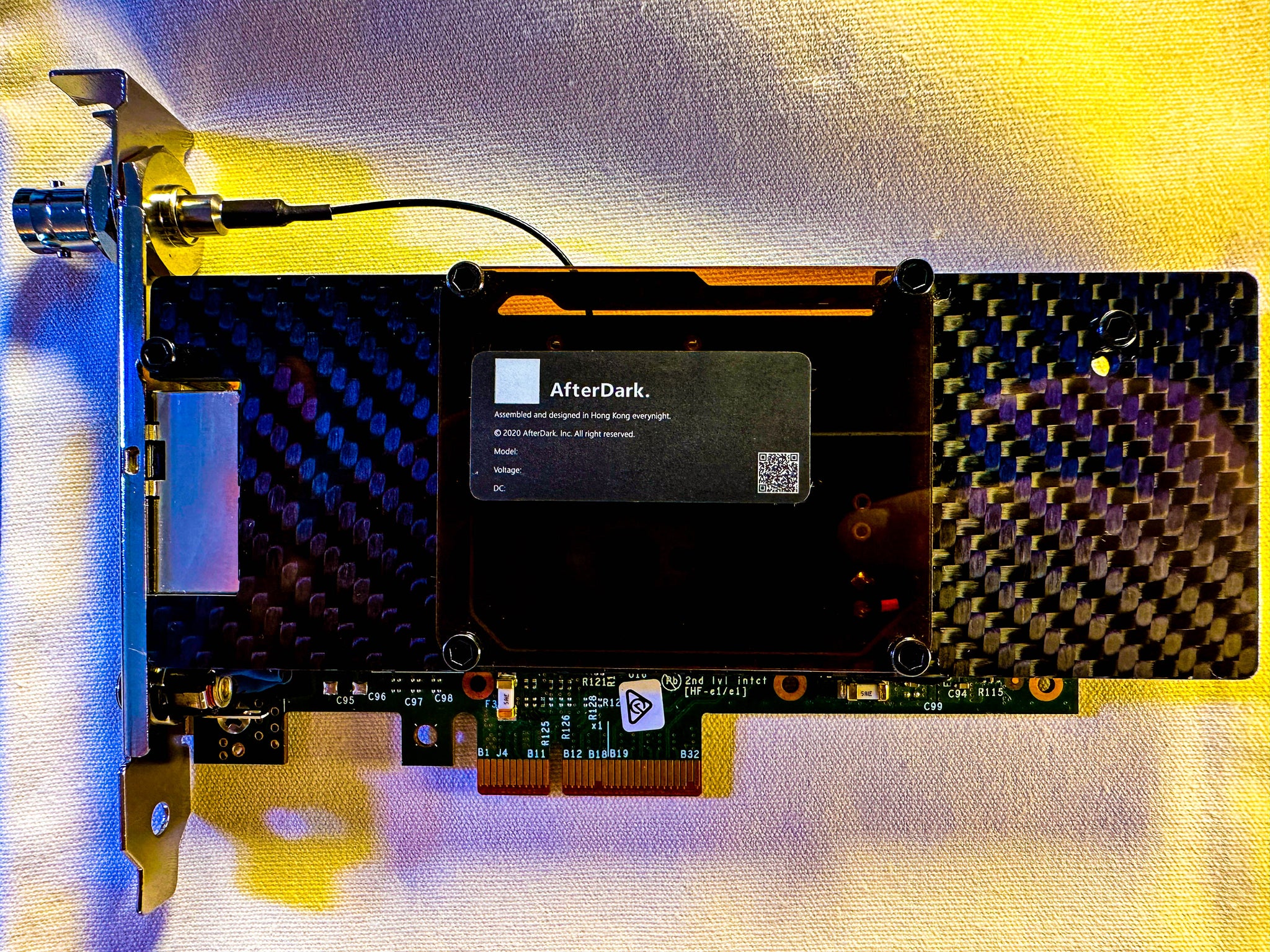

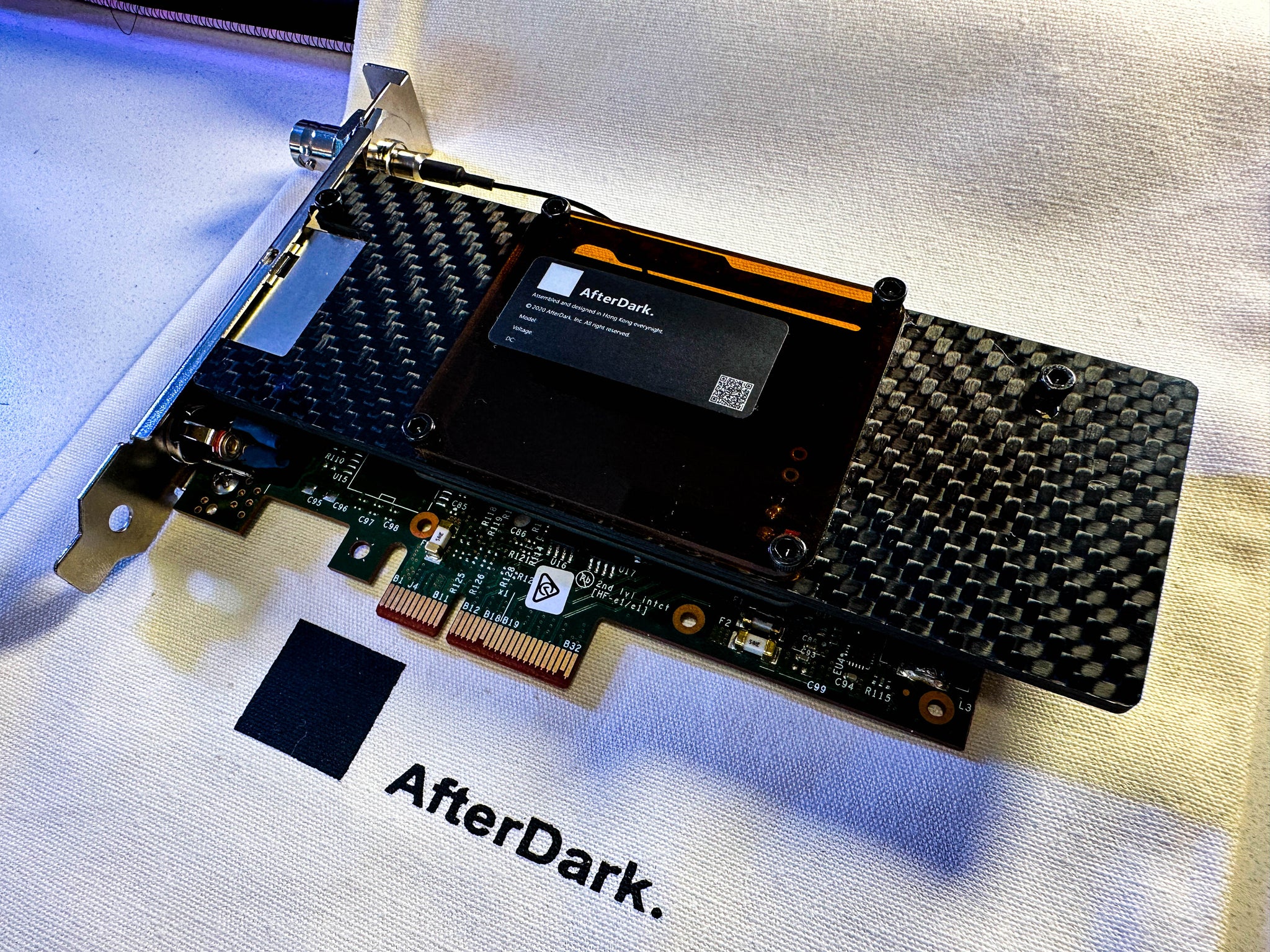

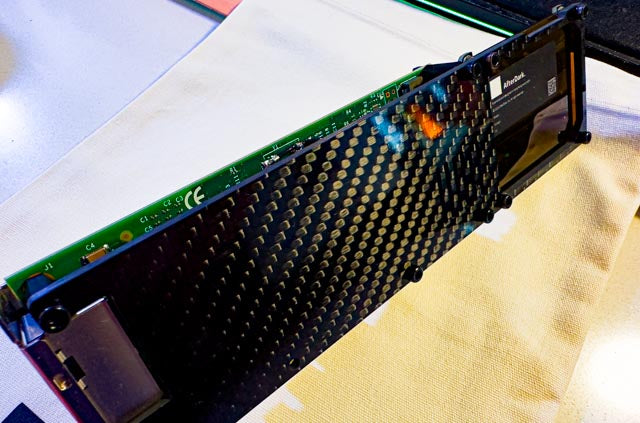

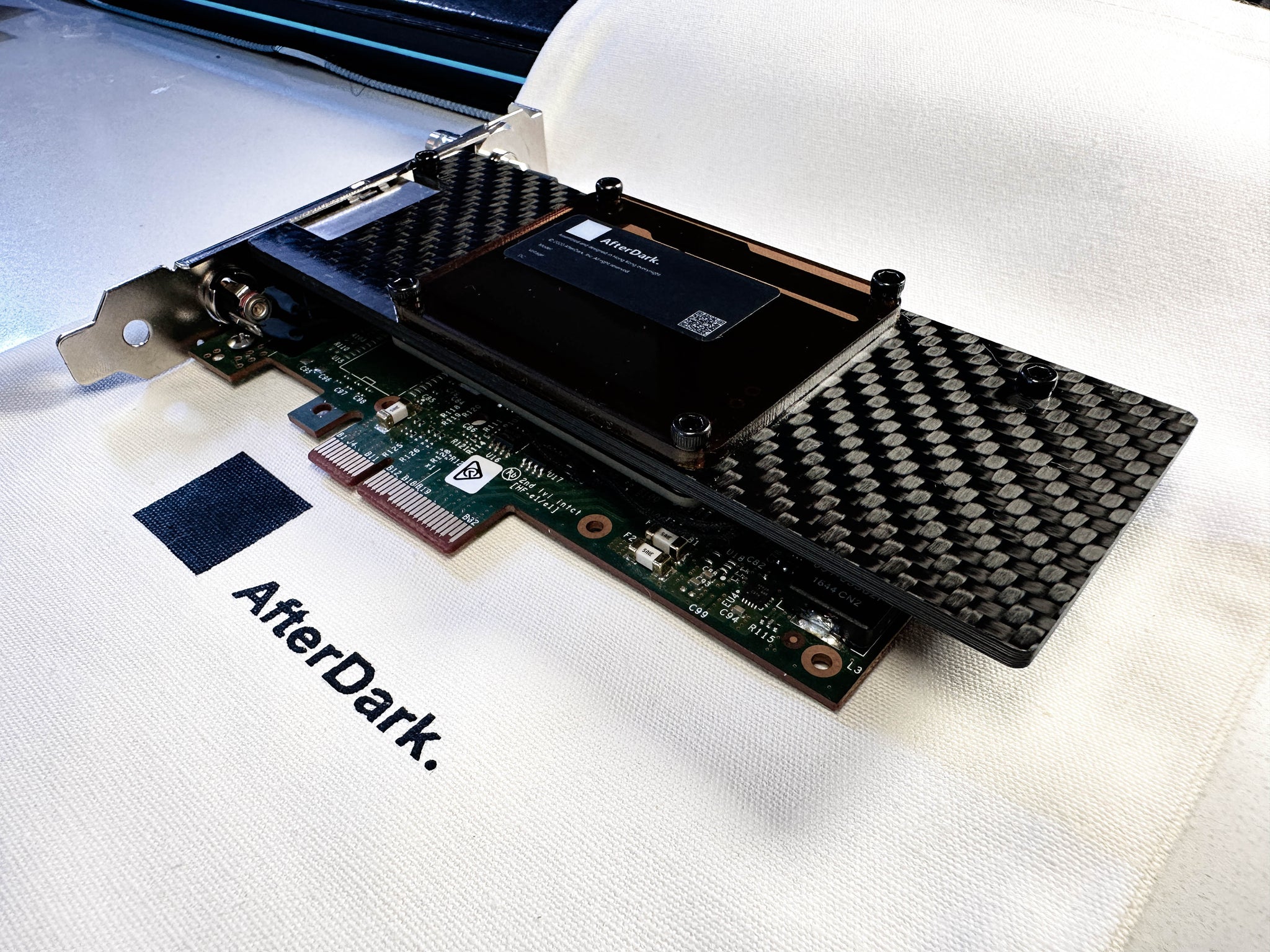

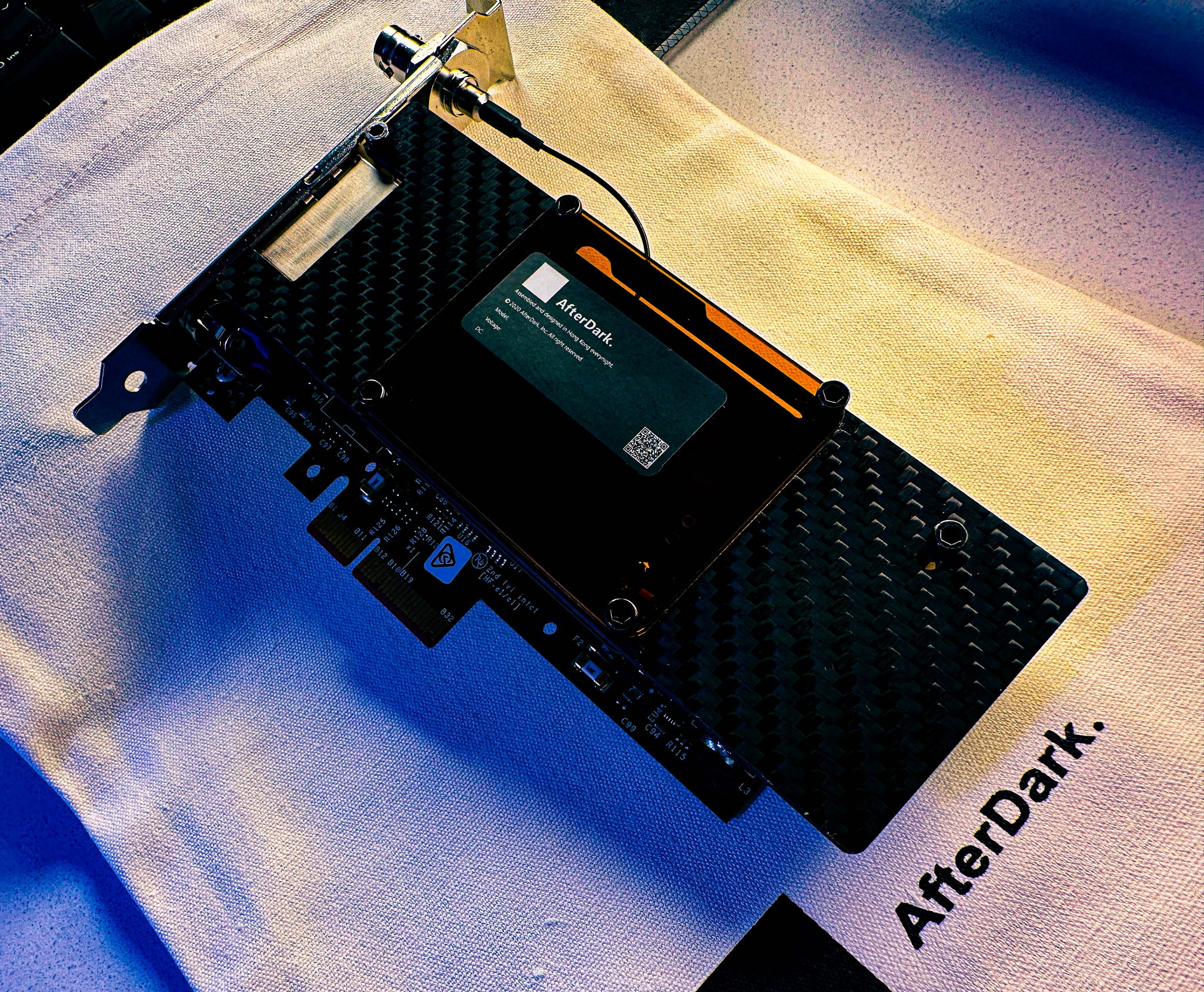

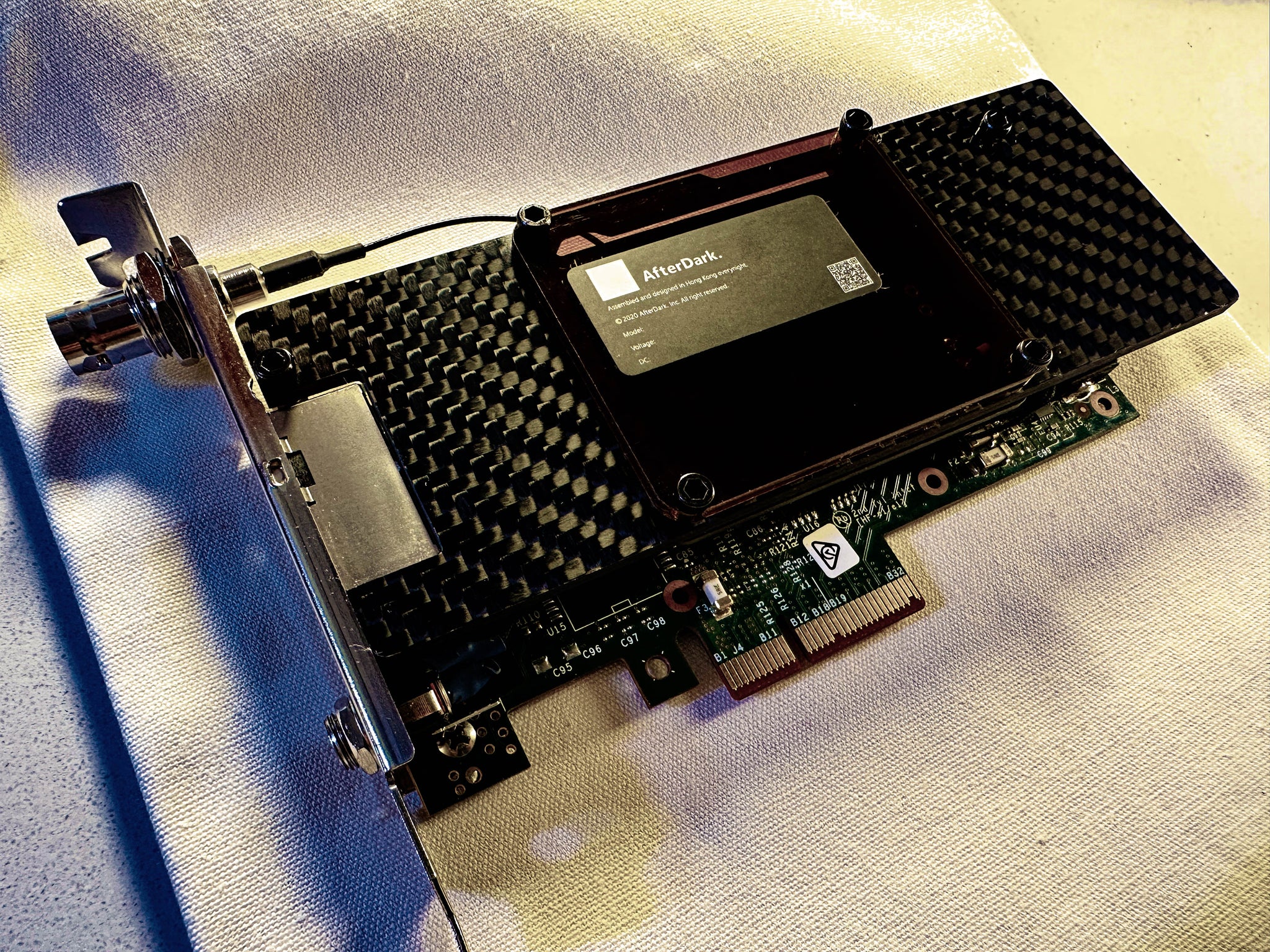

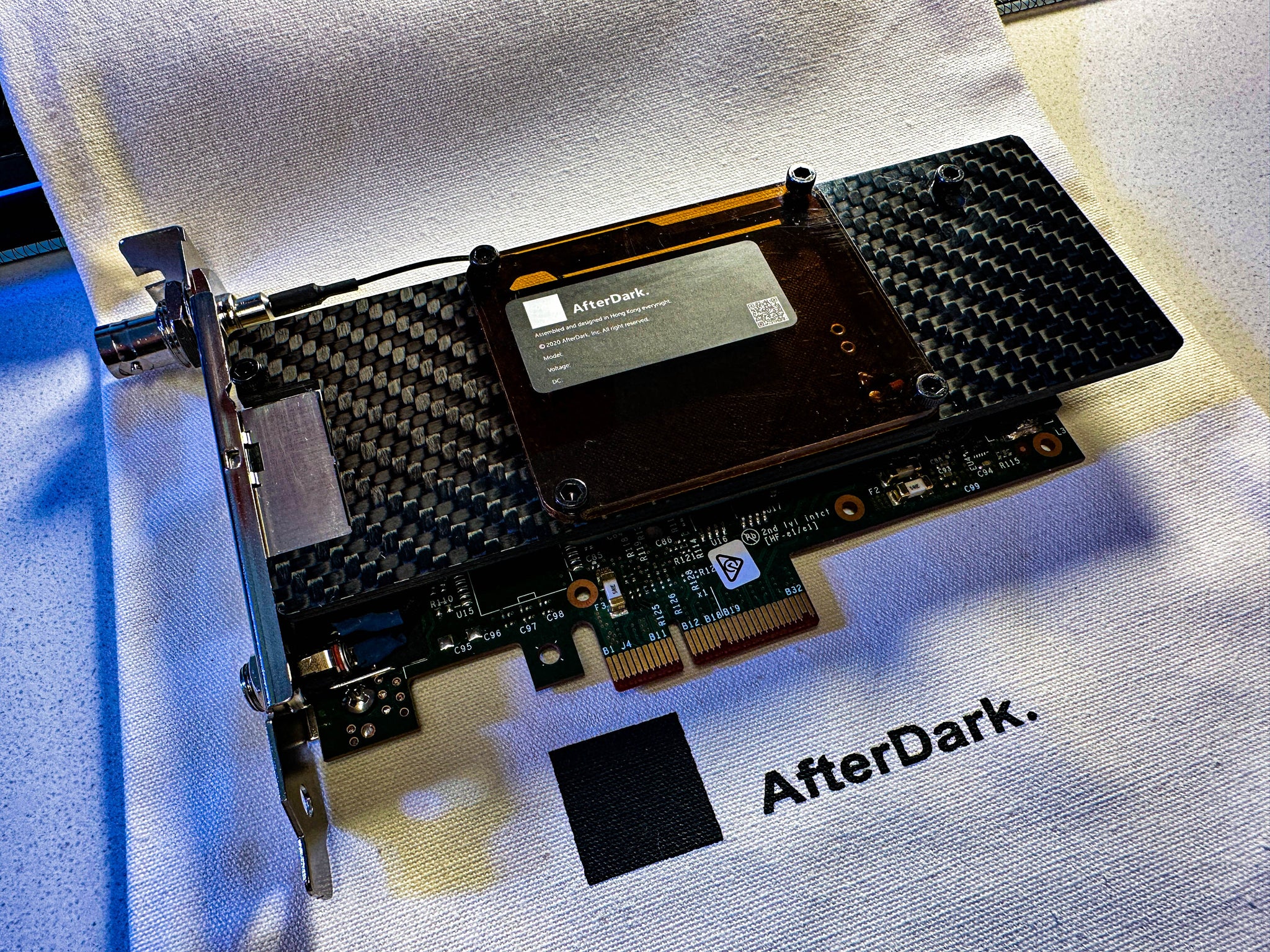

The motherboard arrangement is located and mounted on Carbon Fiber  audiophileMAT to maximise the performance for Giesemann Clock Module (GCM) for Constellation Giesemann Network Card. The grounding arrangement and 5V DC port slot is located on the bottom of the PCIe card to provide the best electronic contact for the clock module.  The Constellation Giesemann Network Card is balance in sounding, no excessive mid and bass. The mid-range is sweet and background is full of darkness with trace of micro details. Soundstage is deep and instrument opened up nicely on music, the bass is just right. Overall Constellation Giesemann Network Card is very musical, airly and provide the state of art resolution in music. Highly recommended.






What is special about X1?



  • The Netword Card is tailor made to use 10M Master Clock to optimise sounding.  Audiophile can make use of their 10M Master Clock to provide the master sync for the audiophile system. Using the single Master Clocking system can achieve the best possible sound quality for both Roon Server on NIC and Switches and Network Player. Improves music playback from Roon (Tidal, Qobuz) and files on local network.
    • 10M Master Clock Signal can be either Square Wave or Sine Wave
    • Full supports for all AfterDark. Giesemann Master Clock, Mutec Master Clock and Cybershaft Master Clock
    • 50 ohms or 75 ohms input version can be choose when order.

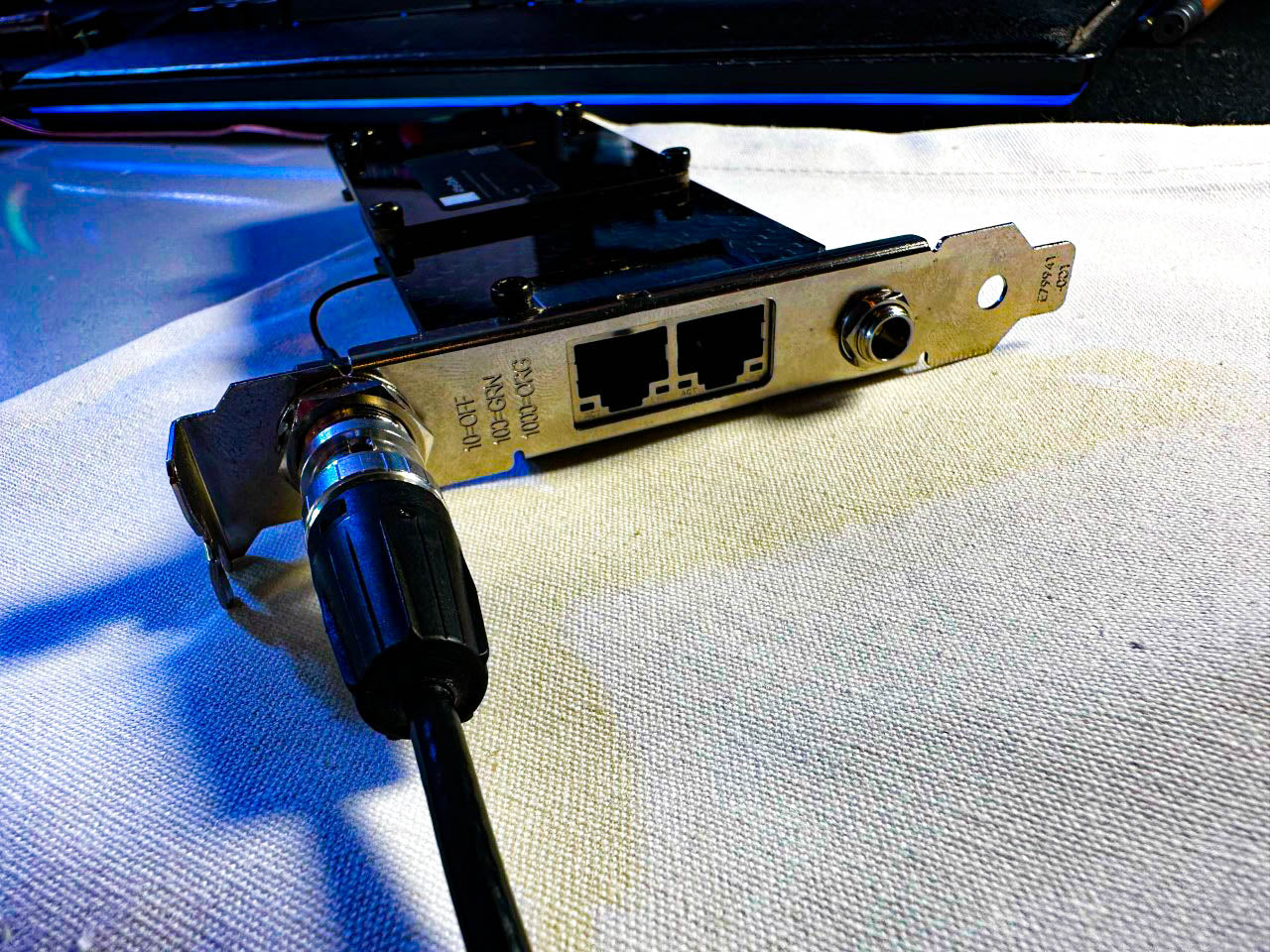

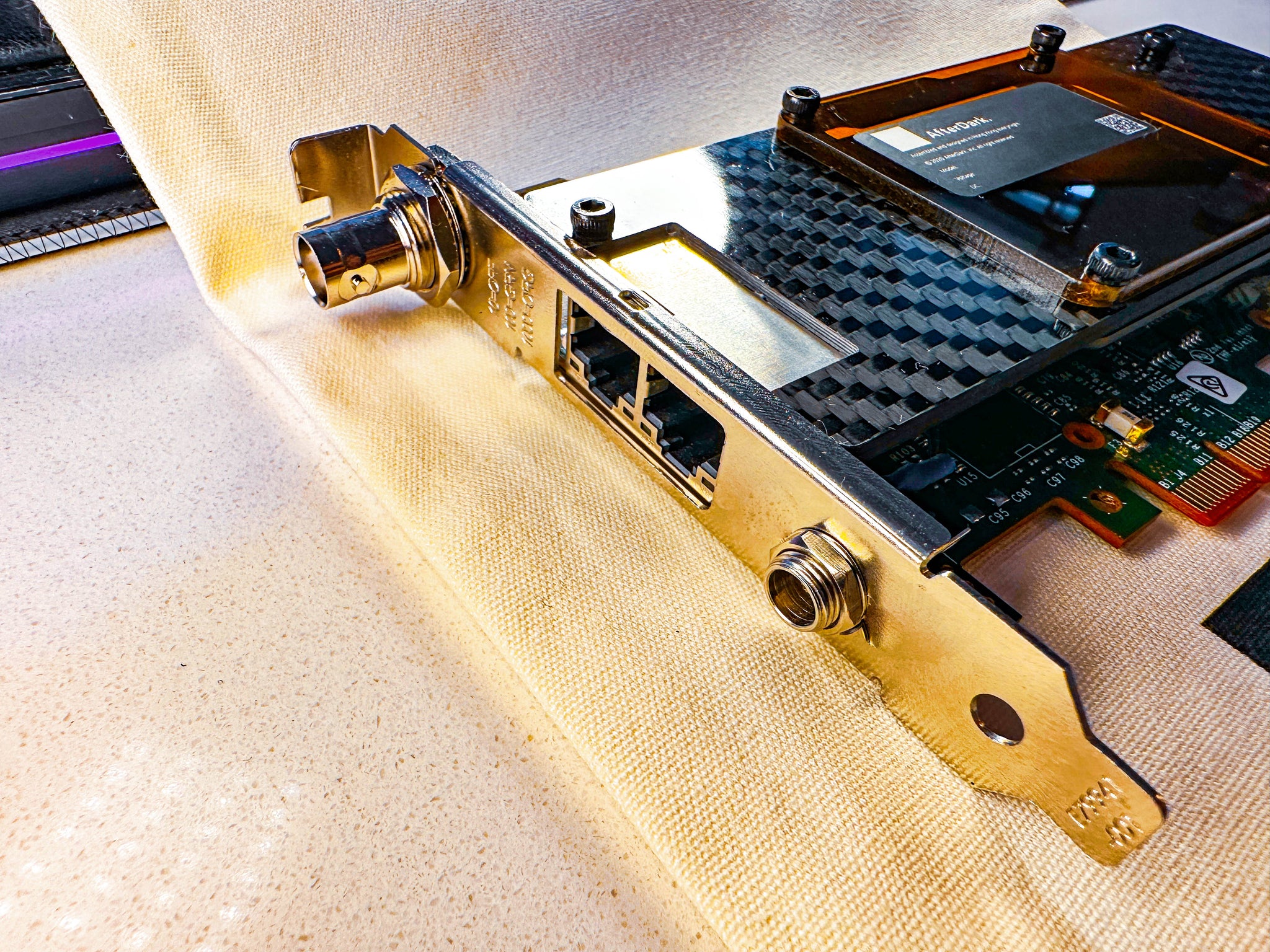

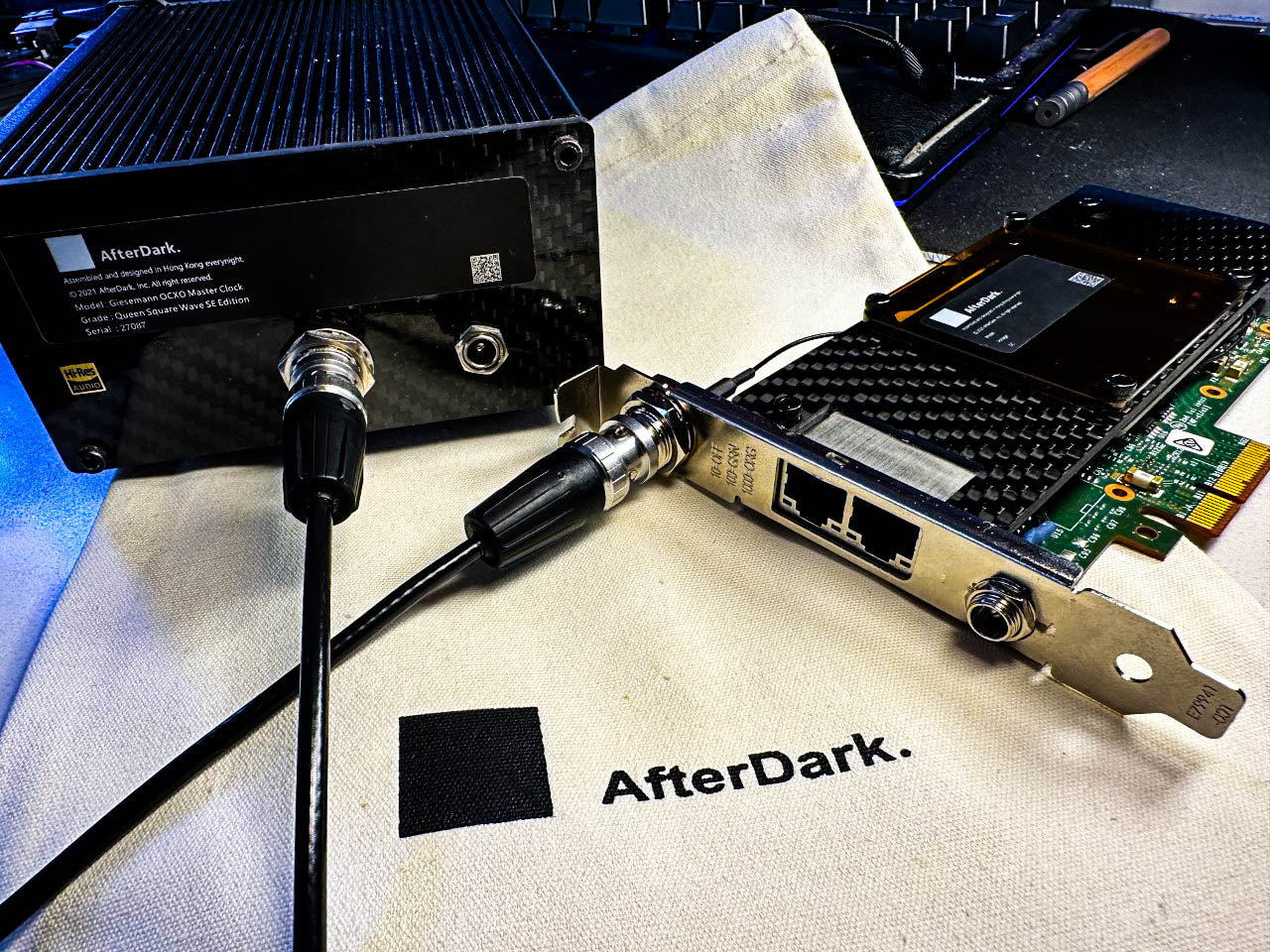

  • The Standard Version of BNC port is used to input external 10M Master Clock. This arrangement and design would ensure Audiophile can use their existing eotic BNC Clock cable without any BNC to SMA adaptor or loss of information in clock signals. Incredible sound quality improvements for any music server.

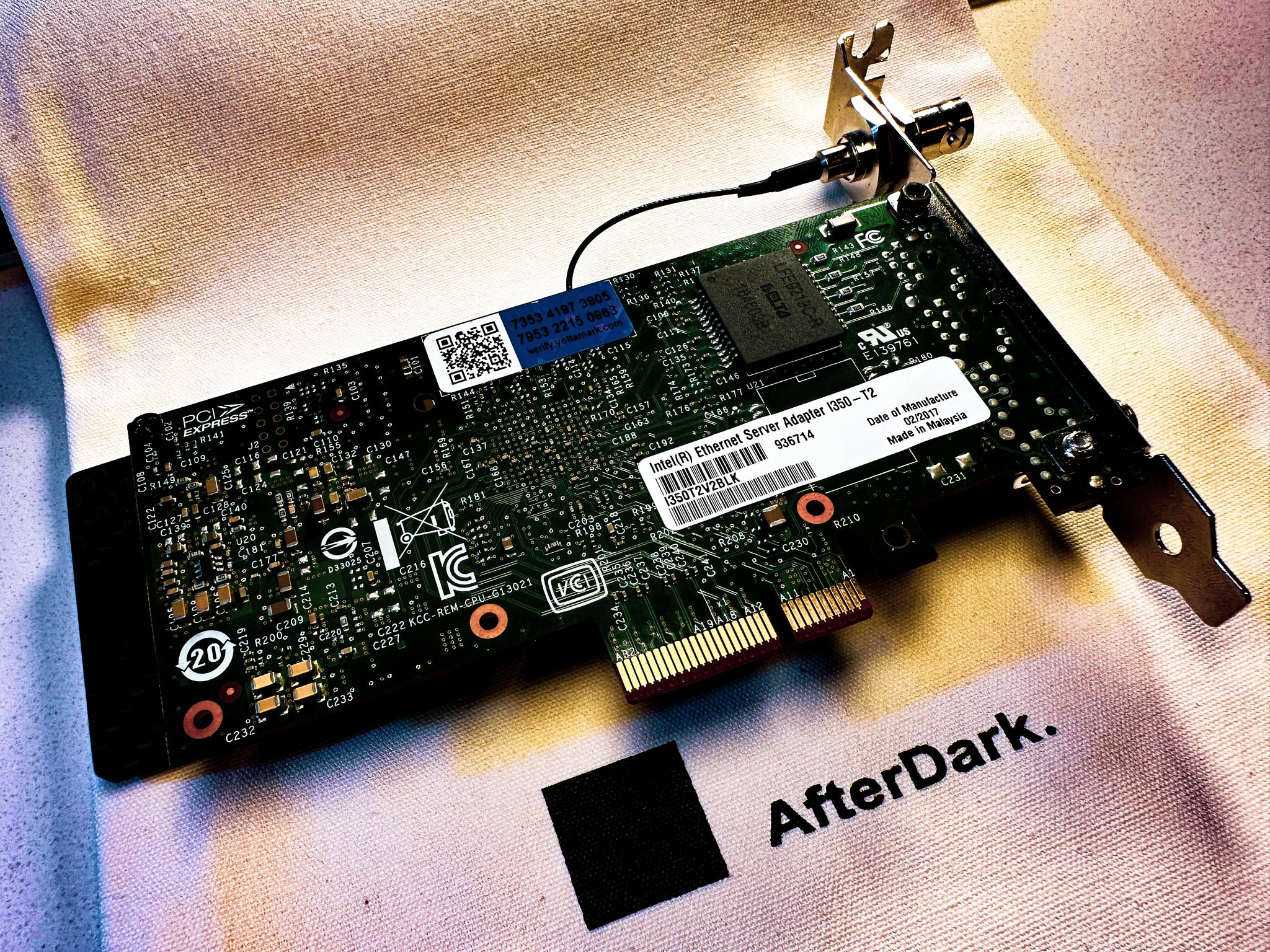

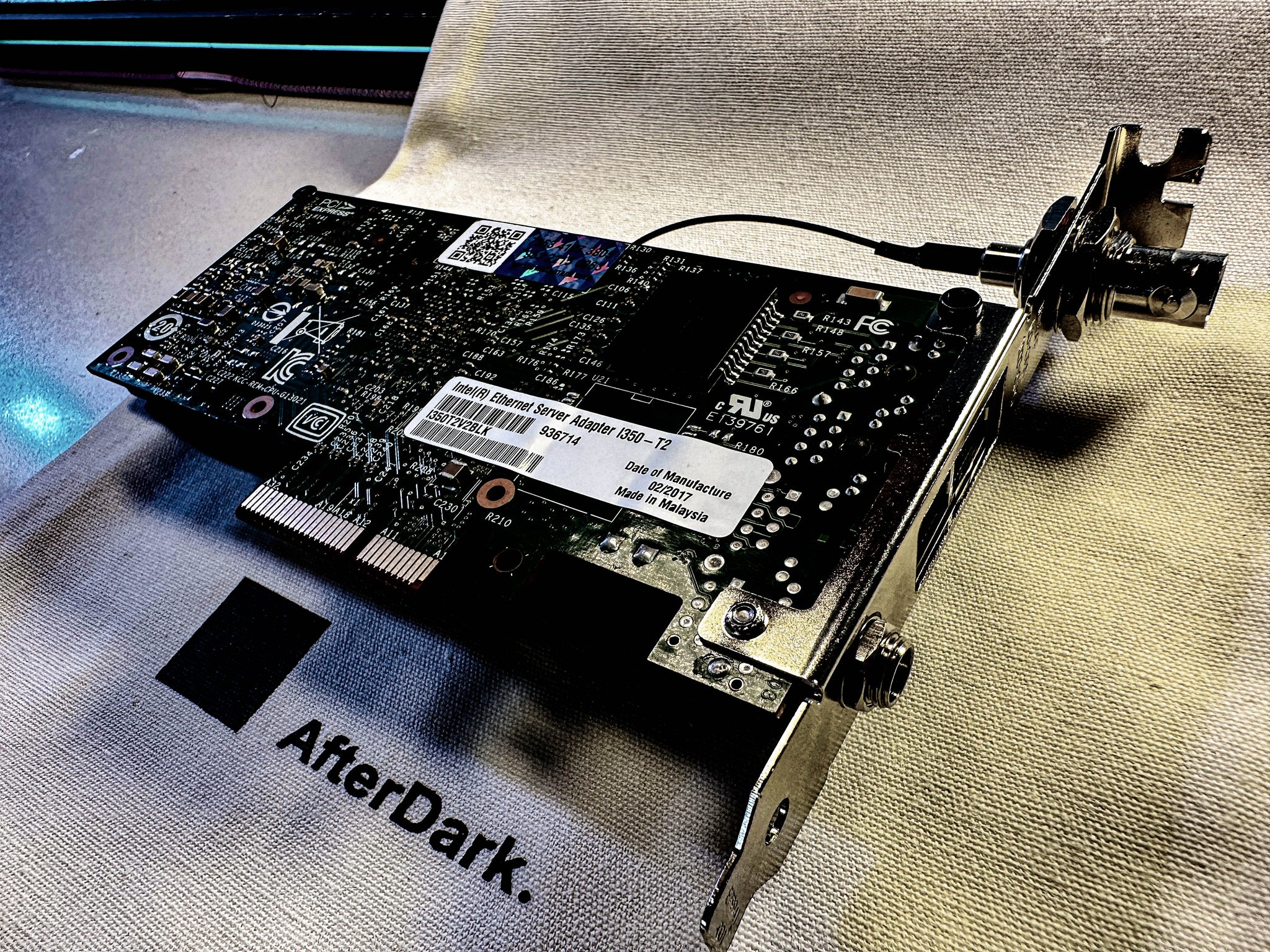

  • The Enterprise level high quality Intel I350-T2V2 Ethernet Controller is used. The V2 chipset is the new generations of I350-T2, the heat is much lower and lower powered. Lower heat means lower noise floor and smoother sounding. The hardware of Intel i350 is well known to provide much better stability and this can provide the best support for operating system: Windows (all editions and Linux of UBuntu, Snakeoil). Plug and Play of any PC wotj a PCIe slot.






  • The power section of Gisemann Clock Module (GCM) is separated power by external LPS at 5V 2A. It eliminates computer as source of powers. For lowest noise and best sounding using Farad Super 3 power supplies.






  • Two audiophile grade network ports supports up to 1Gbit connection speed.  Audiophile can make use of network bridge function to connect one port for incoming and other port to connect the music streamer directly. The noise floor will be much quieter and details on background will improves.






Why use OCXO Master Clock?


You will get an improvement in dynamic's, a lower noise floor and more natural flow in the sound.

  • For us a OCXO Master Clock is one of the most important factor's in ensuring the best possible sonic platform for any hifi system!



  • The Giesemann Master Clock is designed for high precision audio equipment to enhance the integrity of the signal, the top of the line Giesemann OCXO ensure the accuracy of the master clock prodvide a time domain reference for reading data, its transfer and decoding. As a result, the Master Clock could minimize jitter and ensure the improvement on sounding.

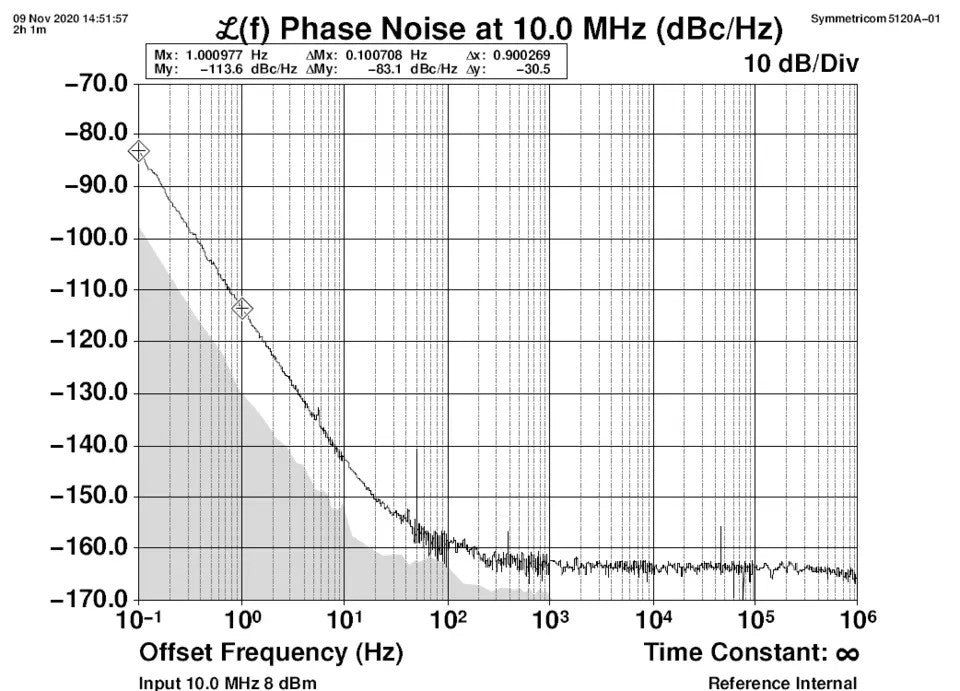

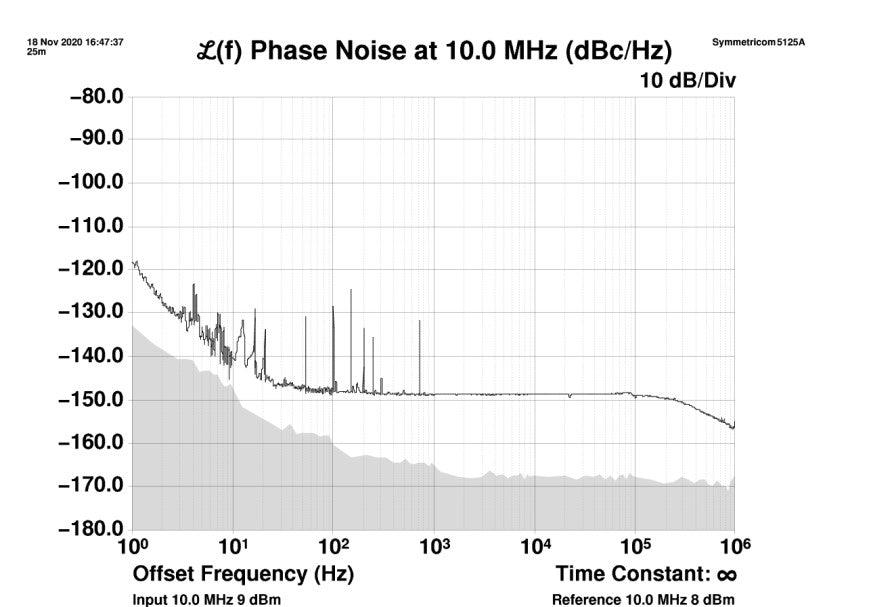

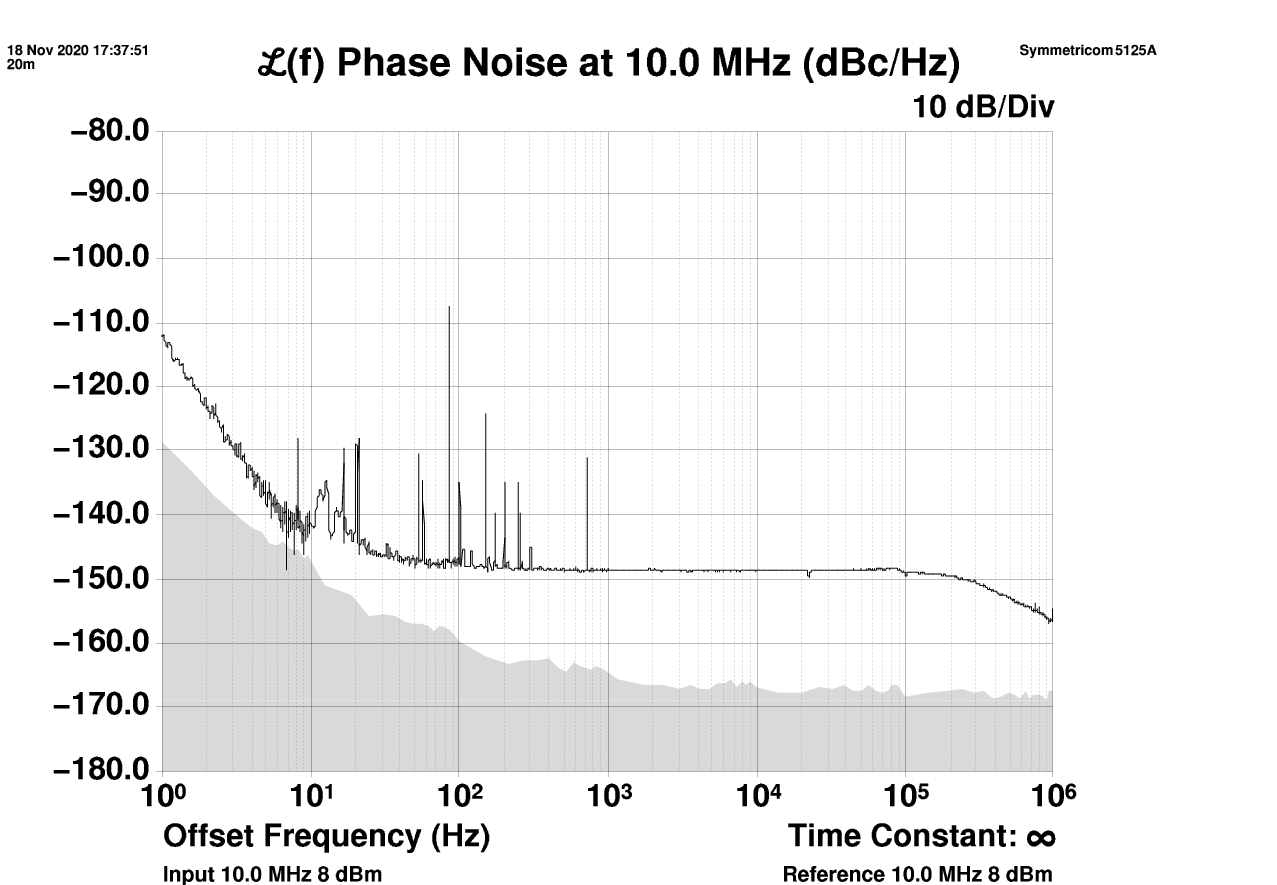

  • The Giesemann EVA OCXO Master Clock is designed to generate a very accurate, ultra low phase noise 10M Master Clock signal that delivers more accurate transfer and conversion of digital signals.



  • The addition of the external 10M Master Clock can improve the soundstage and details of the Music Server, the extraction of details from the background is just amazing and help to achieve optimal music playback with enhanced timbre, full tone, and escpecially pace, rhythm and timing.






Technical Specification:



  • Ultra - Low Noise Linear LT3042 Regulators and filters eliminate the noise interferences from a PC

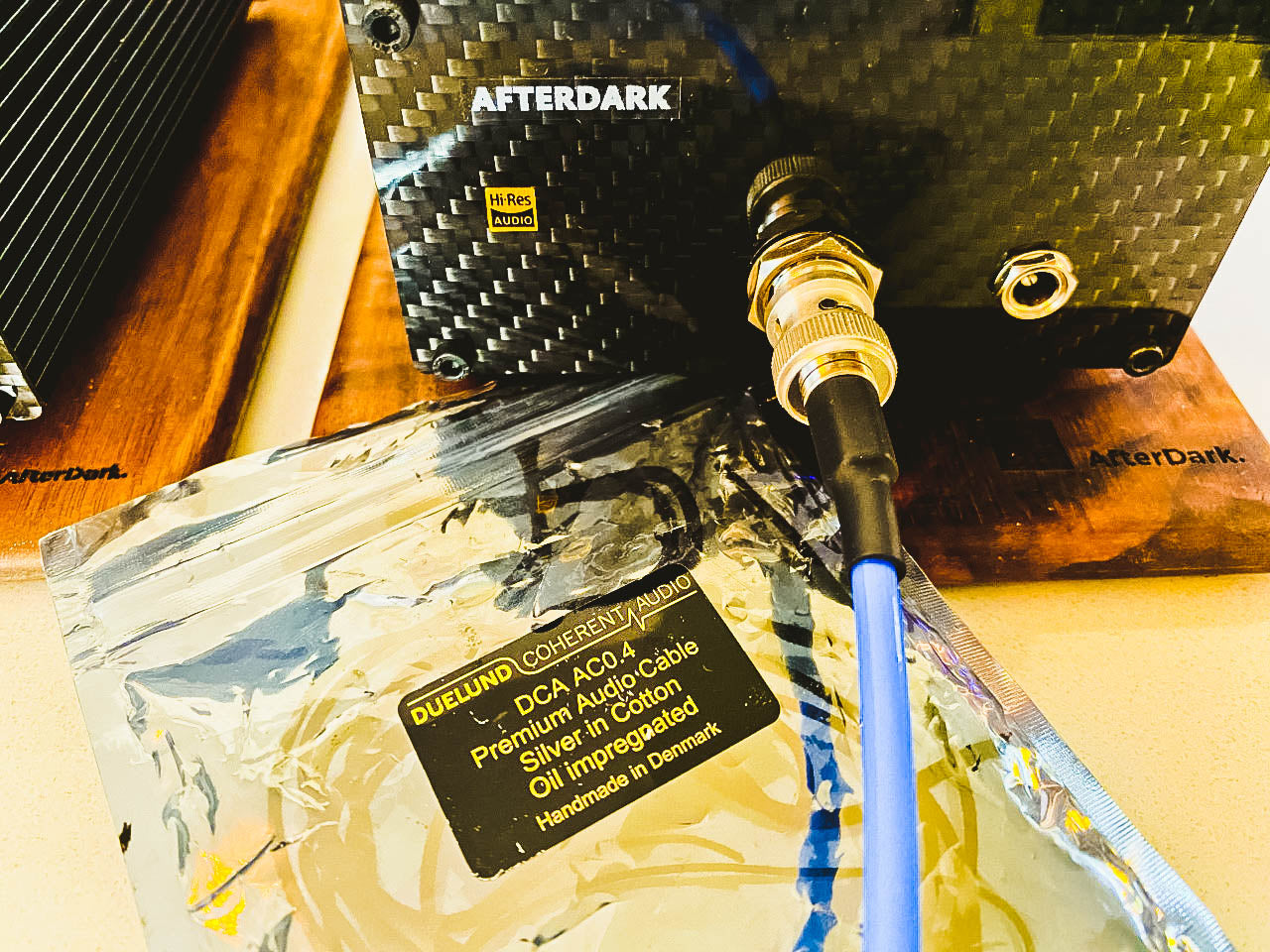

  • Duelund Silver Cable is used to connecting the DC power to Giesemann Clock Module (GCM)
  • DC Port at 2.1mm (Germany Made)
  • 10M Master Clock input of BNC is required to connect to the board for full operation.
  • Master Clock Requires either Square Wave or Sine Wave
  • Version of impendance of 75 ohms or 50 ohms to choose for 10M input
  • Superior OCXO signal isolation, industrial grade IPEX cable for signal transmittion to motherboard. 1st Layer of aluminum foils for High Frequency (HF) Effective shielding. SFS-PE (Foam-Skin Polyethylene) insulated and 2nd layer of copper wire braiding. This will prevent external noise from getting to the signal conductors, shields the shield of the cable to further prevent the ingress of noise (RFI, etc.) into the signal wires.

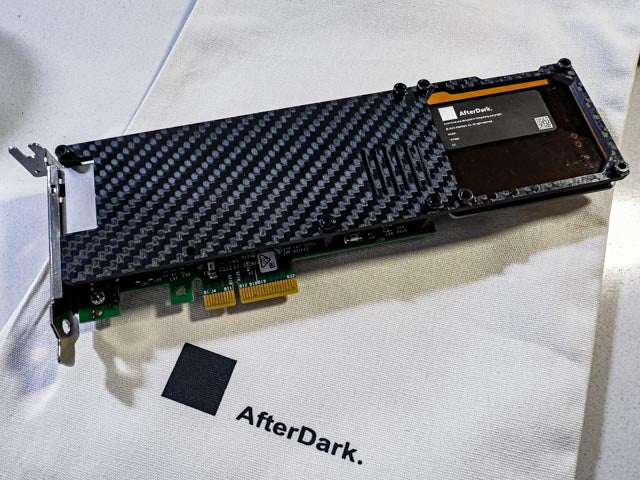

  • Layer of Carbon Fiber Shielding (CFS) for EMI shielding, Carbon Fiber protection provide the highest standard of shielding material which mainly used for industrial and most demanding engineer on special project.
  • “Extra Arrangement on Grounding Wire” the grounding braid outside of the 10M cable was connected by IPEX connector for best connectivity on clock signal witin industrial standard.
  • Enterprise Industrial Version of Intel i350 V2 Ethernet Controller
  • Highest Industrial Grade with wide range of extreme operating temperature -40C to +85C.
  • Gold Plated high performance EMI Shielded RJ-45 connectors.
  • All x3 - x16 lane PCIe 2.0 to 3.0 slots supported
  • All modification hand Made in Hong Kong by AfterDark.



    所有發燒產品從設計,生產和裝配及售後服務將會在香港每日夜晚9點開始...人手製作。
    因為店主只能在晚上開始生產線,店主每晚只能生產有限的AfterDark.產品。

    Type: OCXO Clock
