Gustard R30 R2R 27BIT DAC

Since 2021, AfterDark. introduce the new Giesemann 10M Master Clock. Most customers is already impressed with the improvement for UpTone EtherREGEN. This year 2022, most DAC in the market is introducing the new 10M Master Clock input for audiophiles who wants the best sounding whille unlock the performance on R2R DAC.

AfterDark. would like to share how we optimised with audiophile system, with 10M Master Clock inputs. The Gustard R30 R2R DAC is the first R2R to build in the Master Clock with i2S hdmi inputs, MQA full decoding via USB and accepting 10M Master Clock inputs from Giesemann 10M Master Clock. The BNC input is 50ohm same input specification with Esoteric gears.

This Gustard R30 R2R Flagship DAC is very attractive in price, costing 1/4 when compared to others R2R DAC in the market. It is worth to examine this Gustard R30 R2R DAC in details to try them with a high quality Giesemann Clock to maximise the sound quality.

10M Master Reference clock Input Ready

R30 R2R can be further optimise its sounding, where we can utilities the 10M Master Reference clock to unlock the real performance on R2R 27Bit QUAD mono independently 4 27Bit R2R for 2 channels.

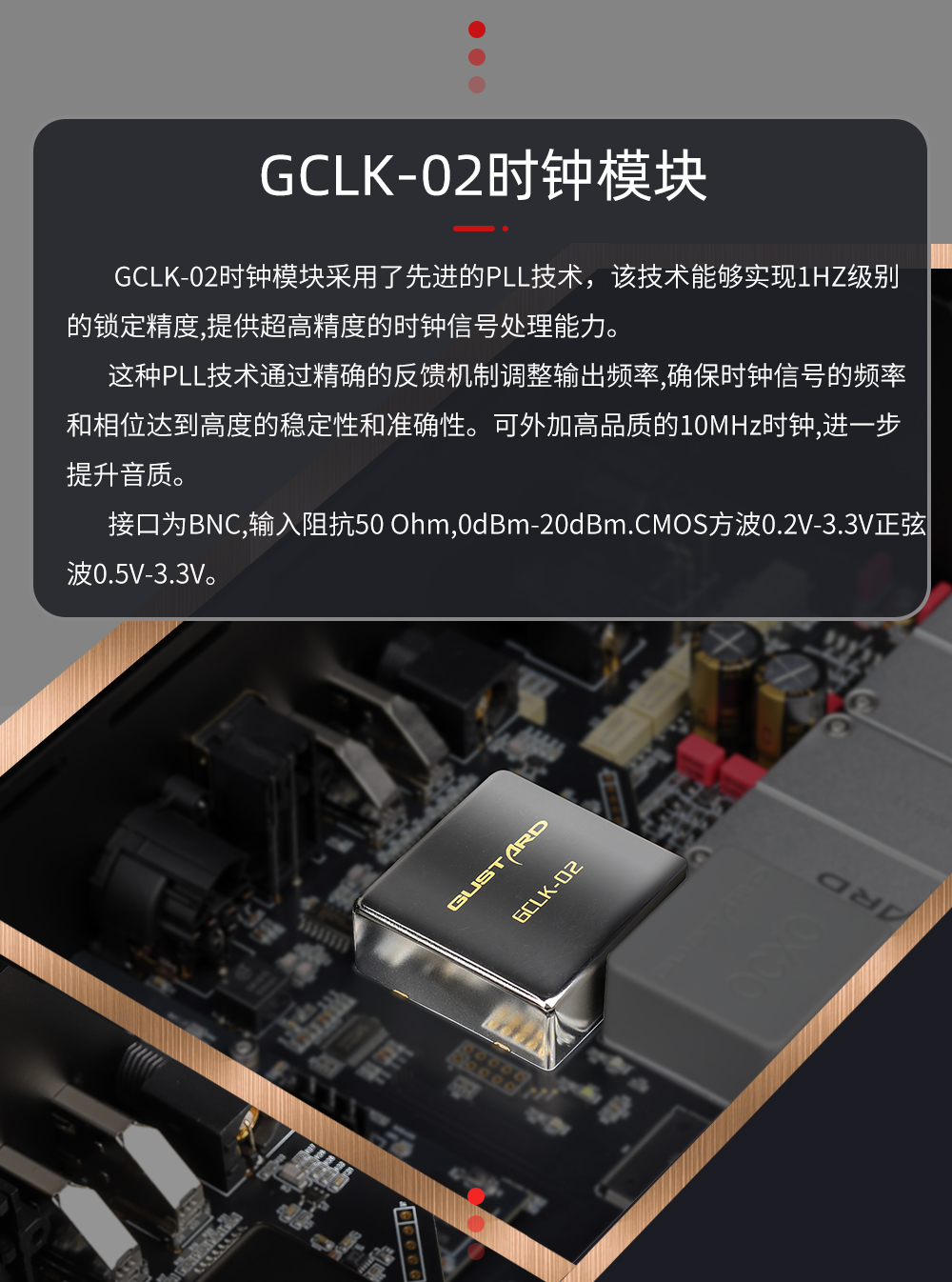

K2 Technology ULTRA LOW NOISE CLOCK Synthesizer  : USB, I2S, AES, Optical, Coaxial and Lan port inputs can improve with 10M Master Clock Input

AfterDark. Giesemann Clock 10M Reference Master Clock - Audiophilestyle.com Edition

Gustard R30 R2R will have USB, Optical, Coaxial, bluetooth, AES , Lan Port and i2S HDMI inputs. For outputs, it'll have RCA and XLR capability. Support LVDS level differential I²S reception (using HDMI interface), it can accept the lowest jitter digital audio! Support up to 7 input modes, compatible with most audio sources!

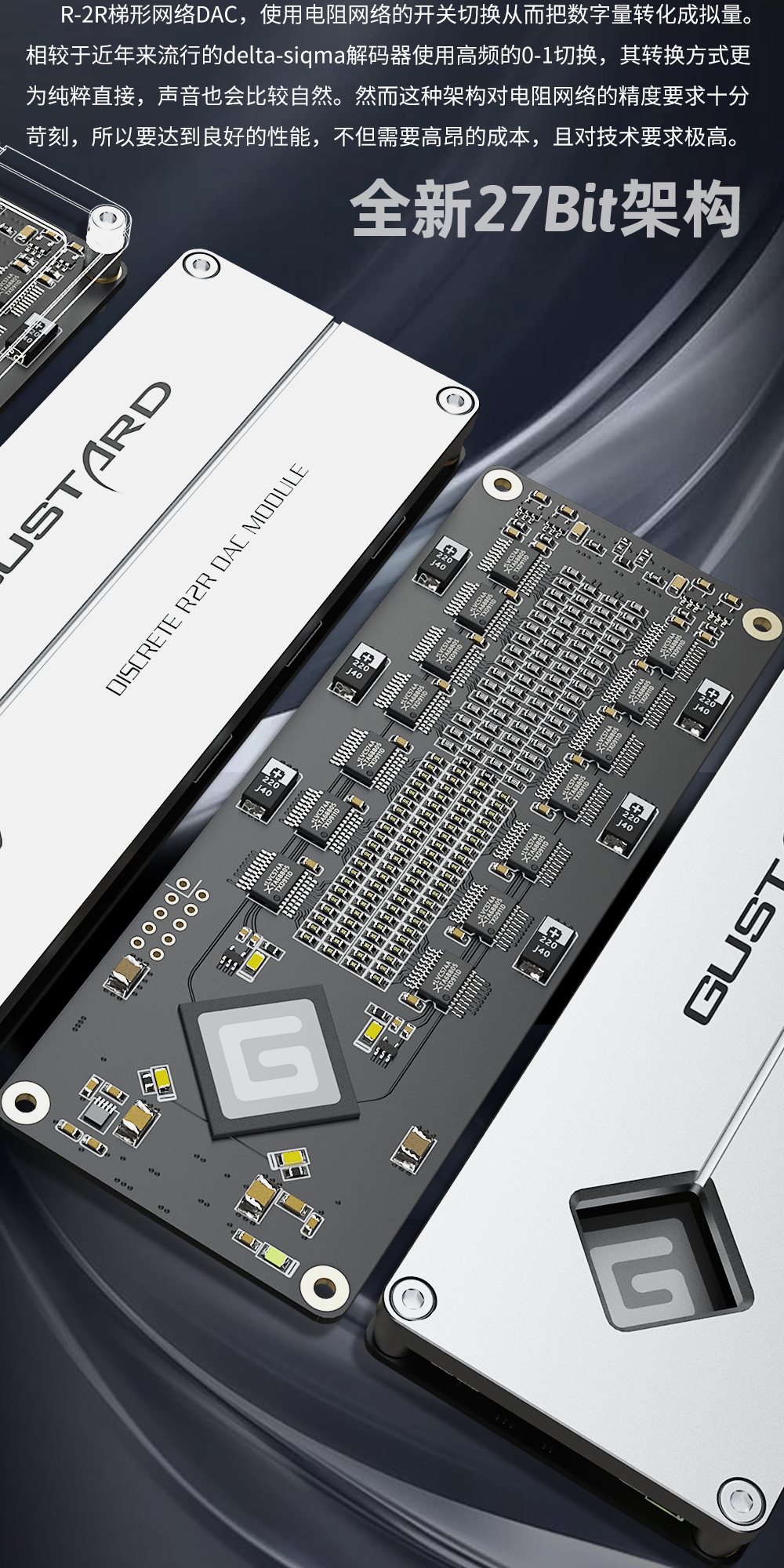

Discrete R2R DAC converts the digital signal to analog signal by high precision matching switching resistors in two arrays for each channels.

Discrete IV conversion circuit and independent adder circuits, ensure high sound quality from the source.

Sony 1Bit Direct DSD Converstion circuit

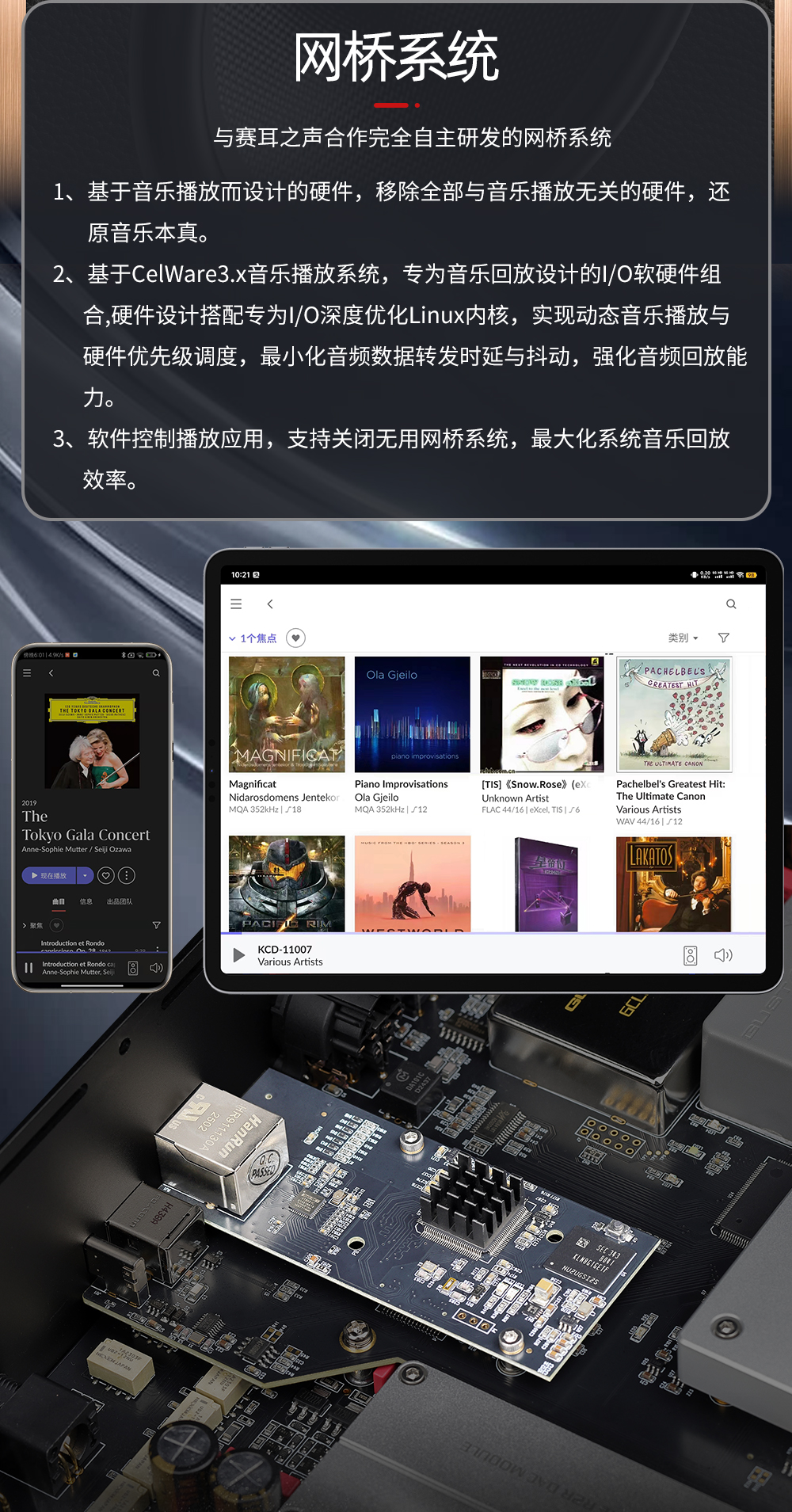

Roon Bridge Network Steaming Modules

Discrete 8 Channels Hybrid I/V Power Conversion Circuit for R2R
