AfterDark. Black Modernize Linear Power Supply for Synology DS918+ & QNAP HS-453DX

Highlight of the AfterDark. Black Modernize Linear Power Supply:

  • AC Incoming: Schurter IEC, Japan Made EDK Switch
  • AC Noise Filter: UK RIFA RFI Suppression Caps & Noise Filter

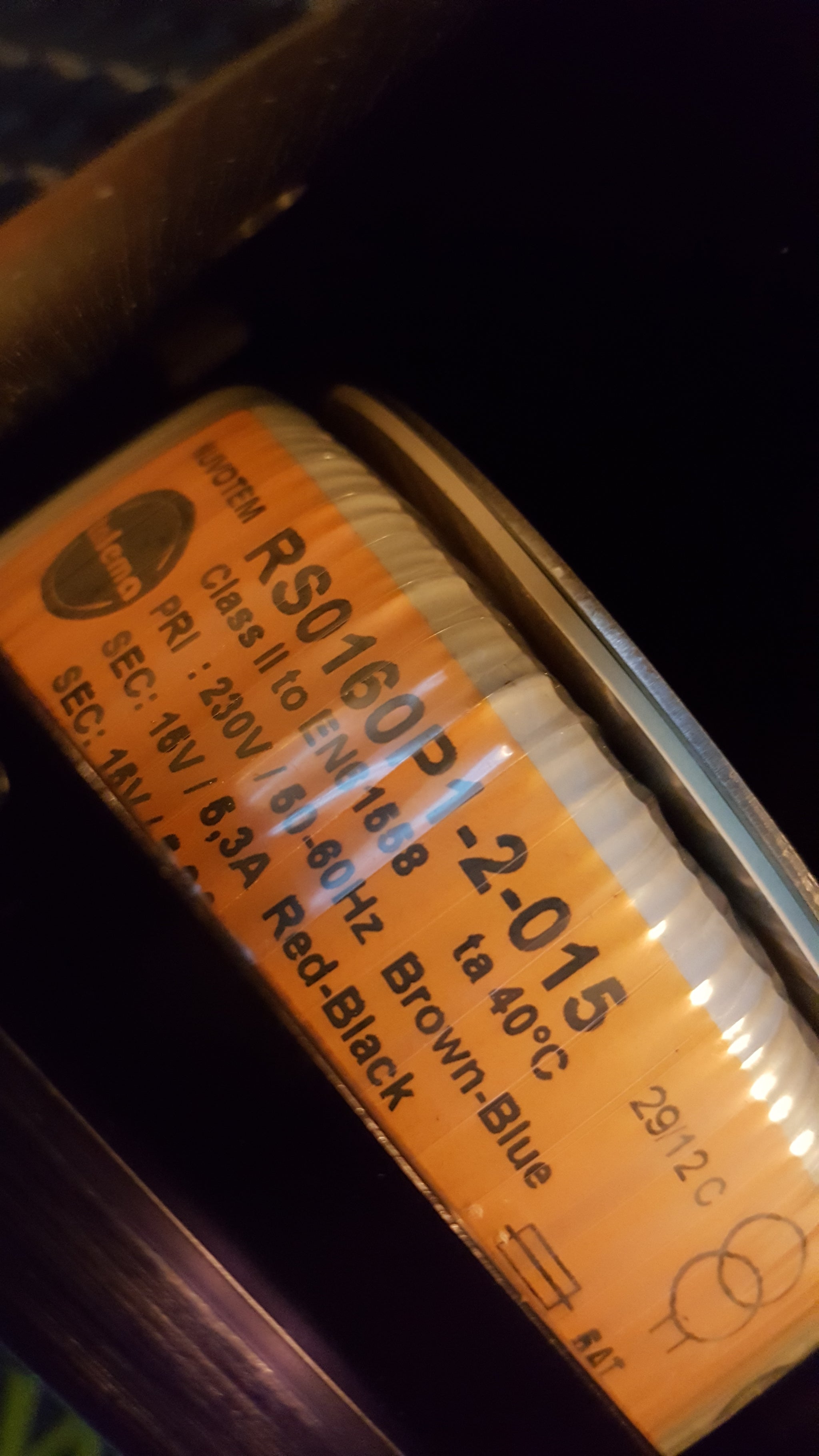

  • AC Transformer: Nuvotem Talema 160VA
  • High Speed Rectifier with RIFA 0.1uf Bypass Caps
  • 日本Rubycon電容 4700uf/25v x 6 Reservoir Caps, total of 28800uf+ !
  • Phillips 1% Precision Resistors
  • Panasonic FC 120uf, 390uf Decoupling Caps
  • Mexico Made Inductors
  • Analog Device OP177 for Voltage Error Feedback Compensation
  • Toshiba Pass Power Transistor
  • One Driven Voltage Output Jacks for 12V 9A
  • Voltage Rating: 12VDC/9A

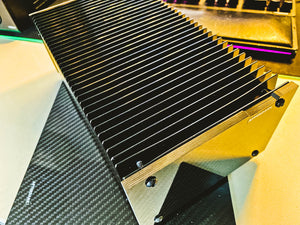

  • Integrated Aluminium Heat-sink chassis at the top, with 5mm thick (very) well designed front panel

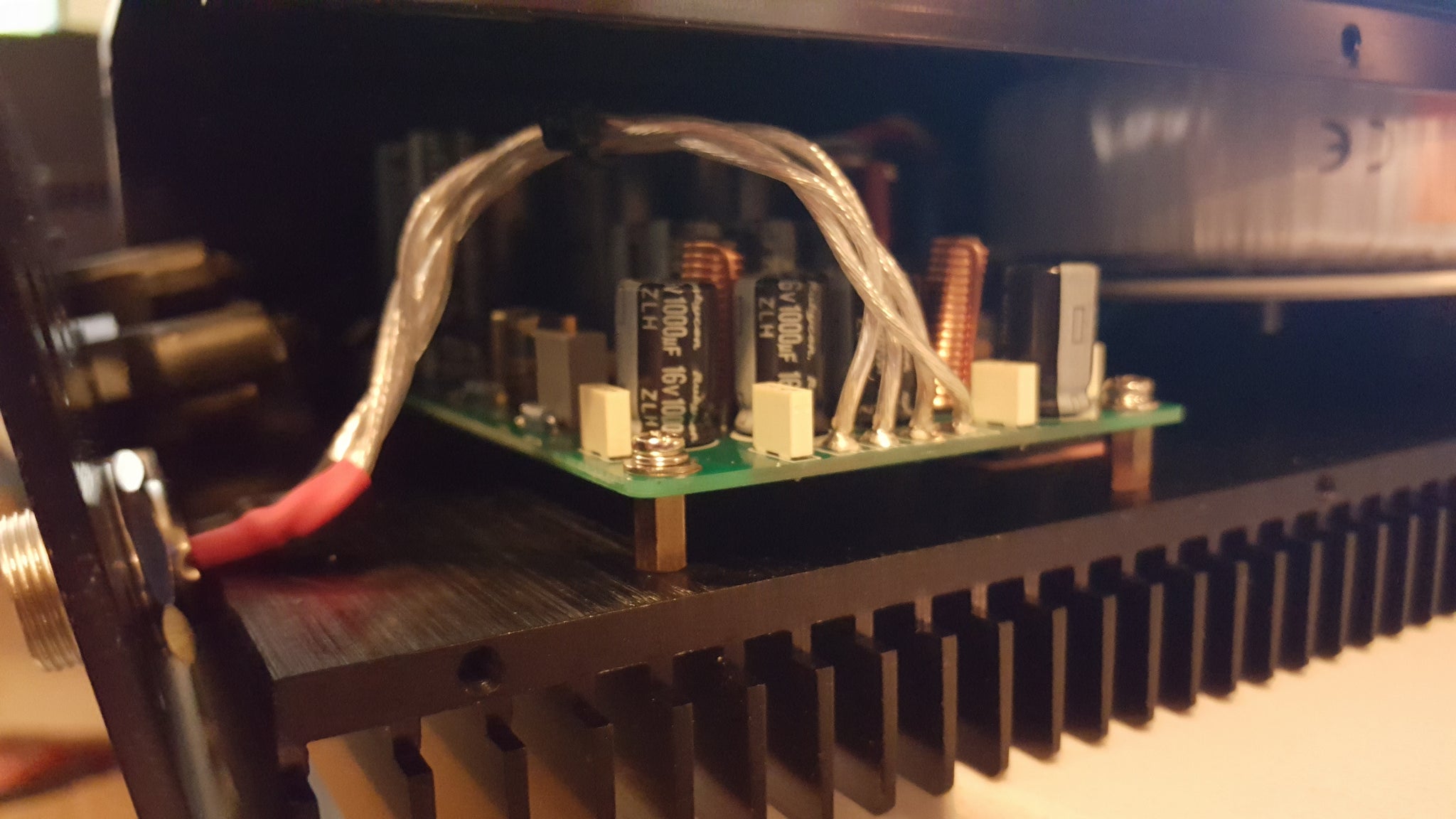

The Heart of AfterDark. Black Modernize Linear Power Supply

The circuit design of LPS is referenced and improved of the well-known Walt Jung Super Reg. The performance is first in the class I must say. Output voltage stays VERY stable with 0.01VDC tolerance despite I'm driving it almost at full load. It only gets a bit warm after a 48hrs of stress test.
