Gustard H16 Audiophile Headphone Amp

Voltage

8 items left

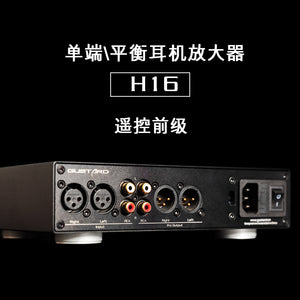

Gustard H16 Audiophile Headphone x PRE Amp

    Product specifications
    • Analog input:
    • One set of RCA standard input,typical input sensitivity:2Vrms; input impedance 4.7kΩ
    • One set of XLR balanced input, typical input sensitivity:+18dBu maximum + 26dBu;input impedance 10kΩ

    Preamplifier analog output(XLR on the rear panel):
    • Frequency response: 20-80kHz/-0.1dB
    • Signal to noise ratio:120dB
    • Channel crosstalk:-120dB@1kHz
    • THD+N:<0.0004%
    • IMD:<0.0004%

    Headphone output (front panel output):
    • Single port output impedance(6.35mm): 0.1Ω
    • Balance port output impedance(XLR 4 PIN, TRS4.4,3.5PRO):0.2Ω
    • Frequency response: 20-80kHz/-0.1dB
    • Signal to noise ratio:>118dB
    • Channel crosstalk:-118dB@1kHz
    • THD+N(1KHz):<0.0005%@3700mW into 640 LOAD
    • IMD: <0.0005% @3700mW into 640 LOAD
    • Maximum undistorted output power 3700mW into 64Ω LOAD balanced output

    Load power (balanced output, high gain):
    • 64Ω    3700mW
    • 150Ω   2268mW
    • 300Ω   1133mW
    • 600Ω   566mW

    Other specifications:
    • AC Power supply: AC 115V/230V 50/60Hz
    • Power consumption:<20W
    • Dimensions:220mm*50mm*170mm
    • Weight: 2.5Kg



    所有發燒產品從設計,生產和裝配及售後服務將會在香港每日夜晚9點開始...人手製作。
    因為店主只能在晚上開始生產線,店主每晚只能生產有限的AfterDark.產品。

    所有客戶現在可以通過訪問online shop下訂單,  並通過Visa卡 / Master卡/ PayPal/ Apple Pay/ Goggle Pay 在線直接付款, 接受一切國際訂單。AfterDark網上商店.



    Type: DAC
