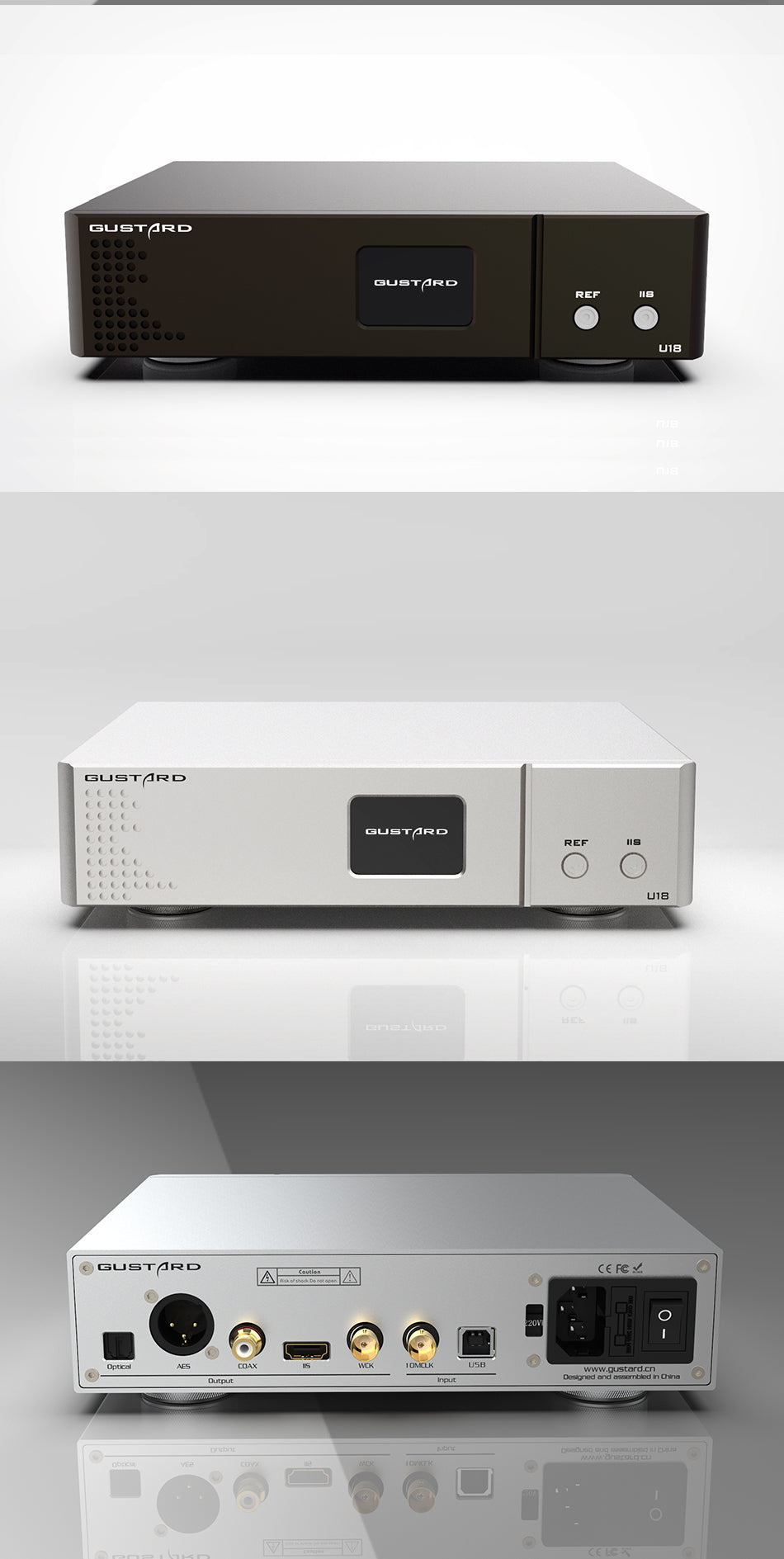

Color
BLACK
SILVER

3 items left

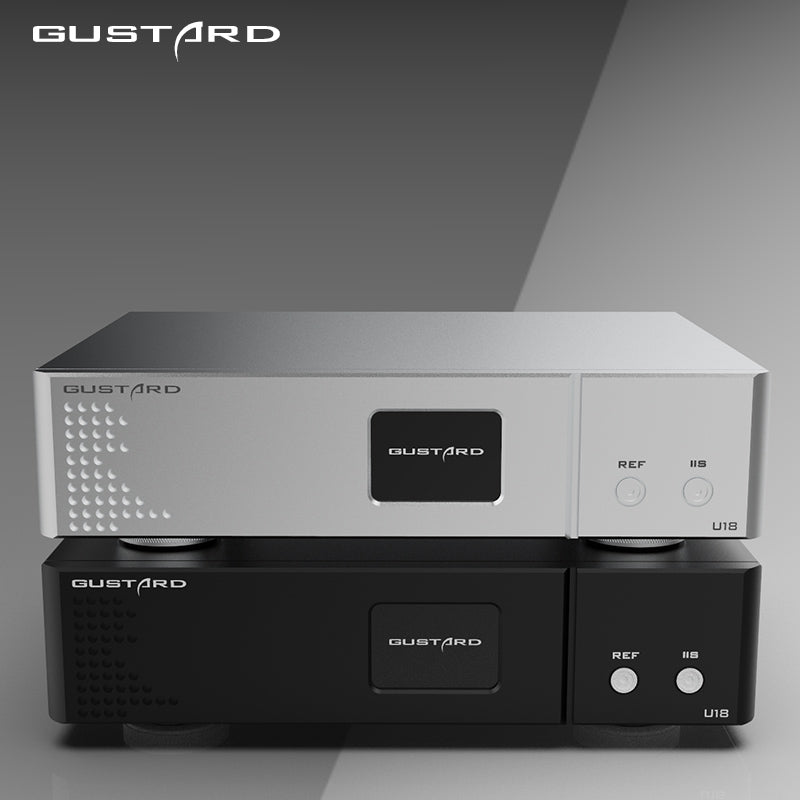

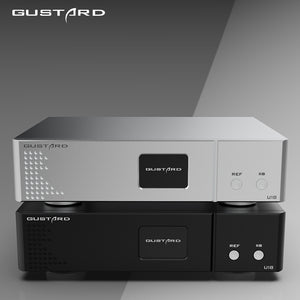

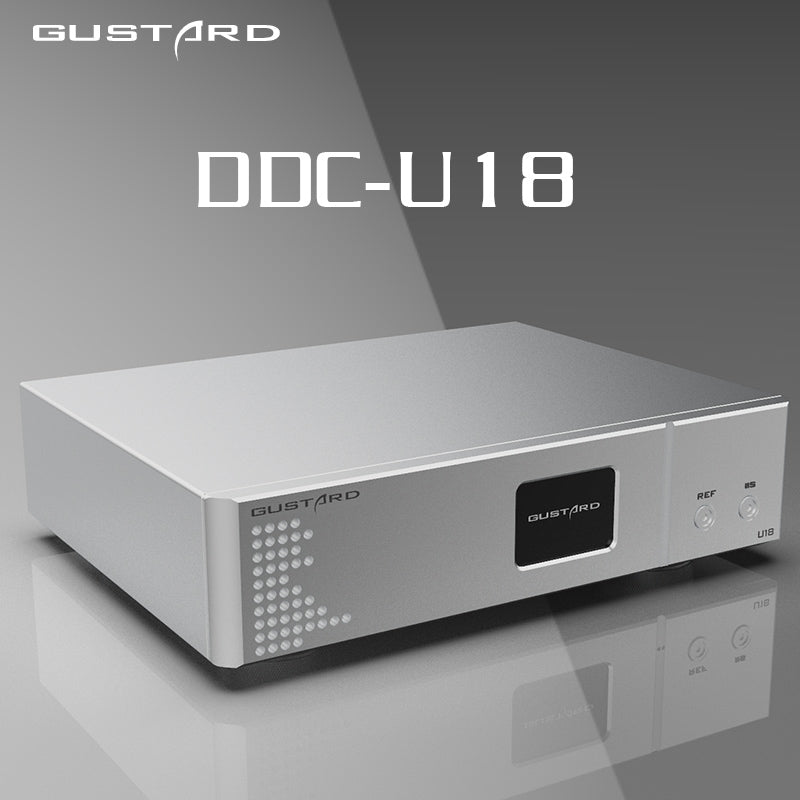

GUSTARD U18 DDC

Descriptions:

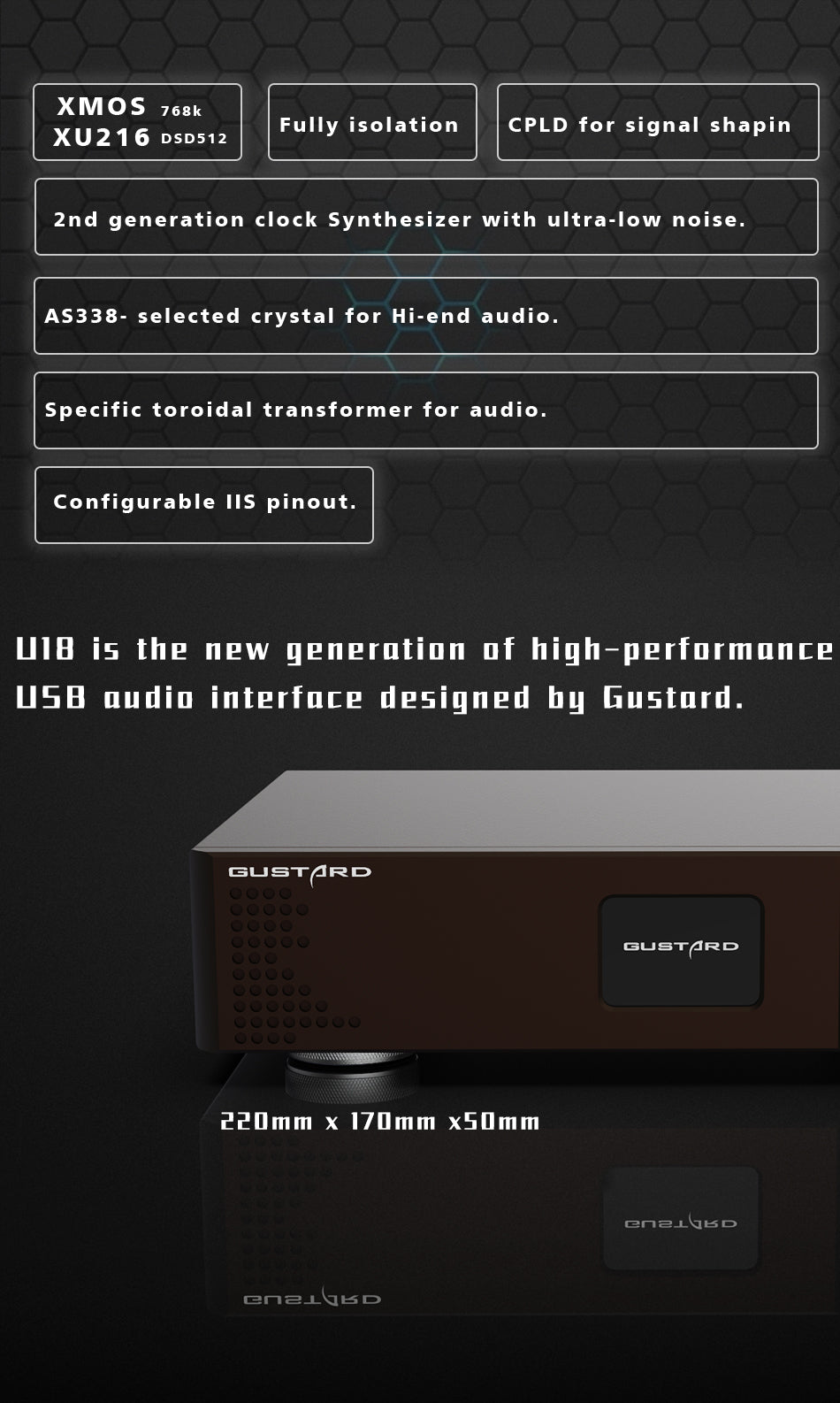

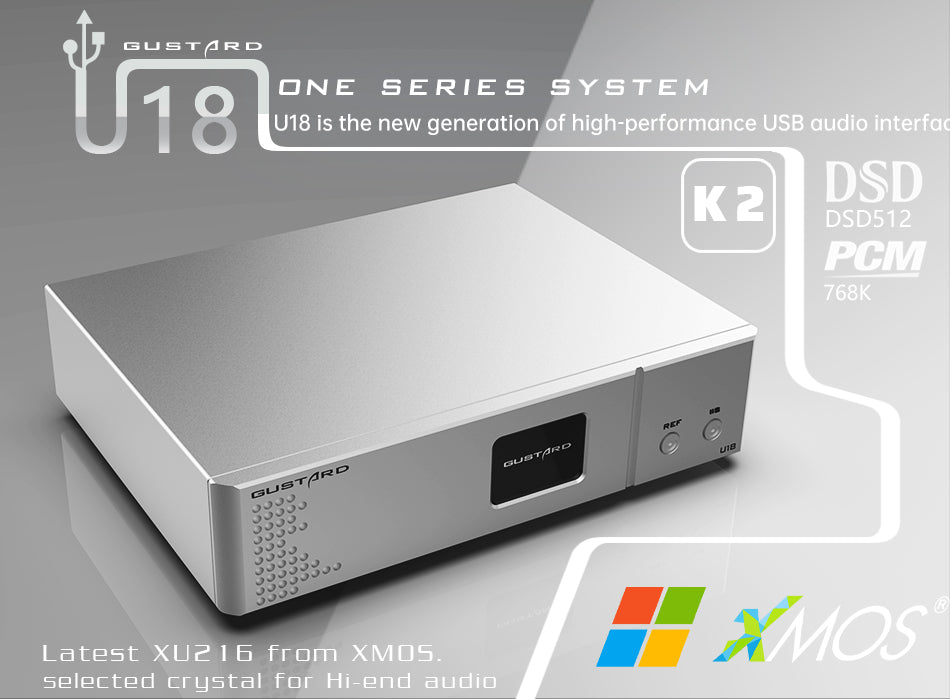

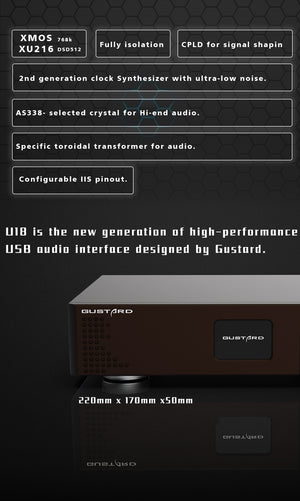

U18 is the new generation of high-performance USB audio interface designed by Gustard.

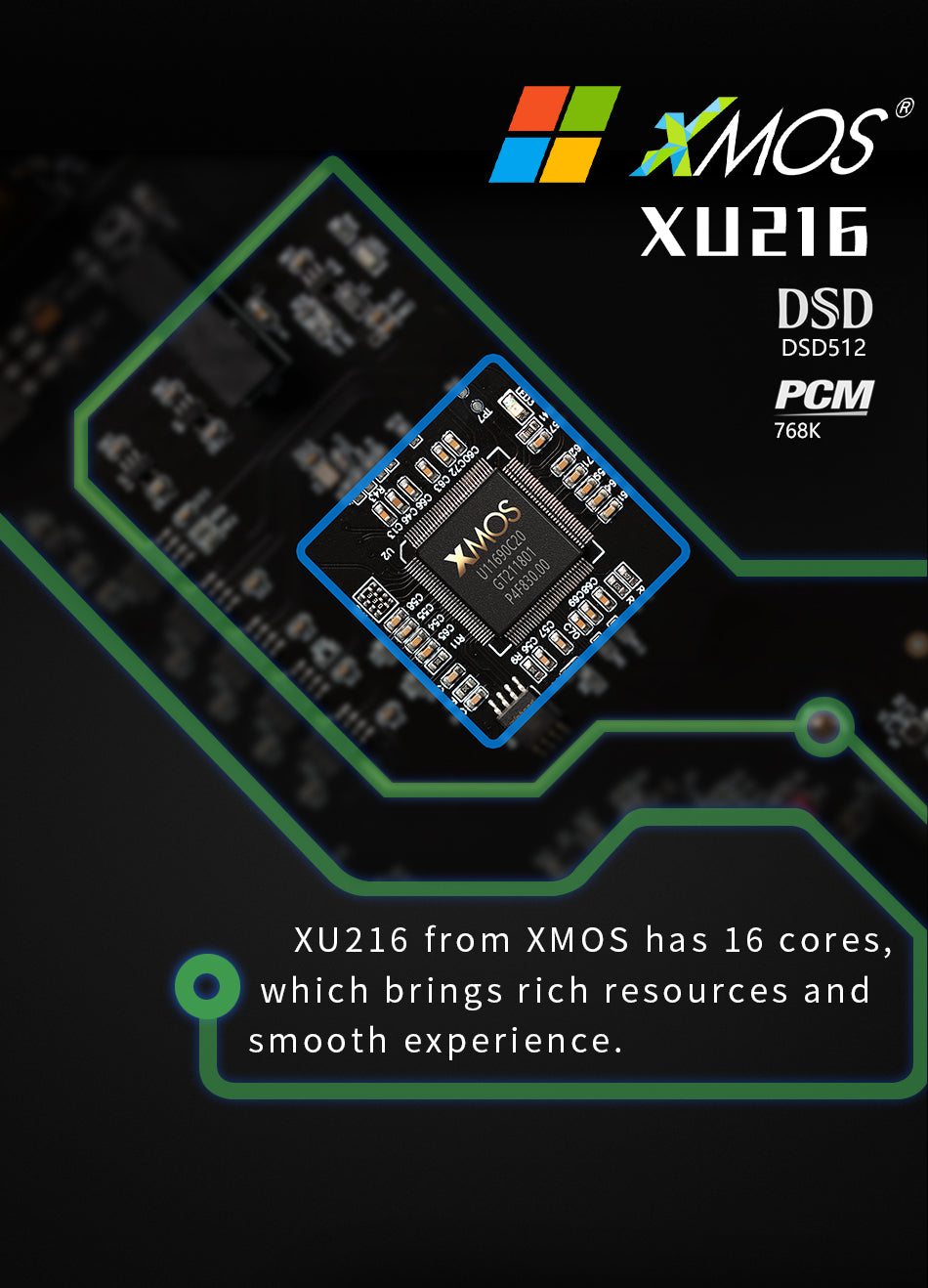

XU216 from XMOS has 16 cores, which brings rich resources and a smooth experience.

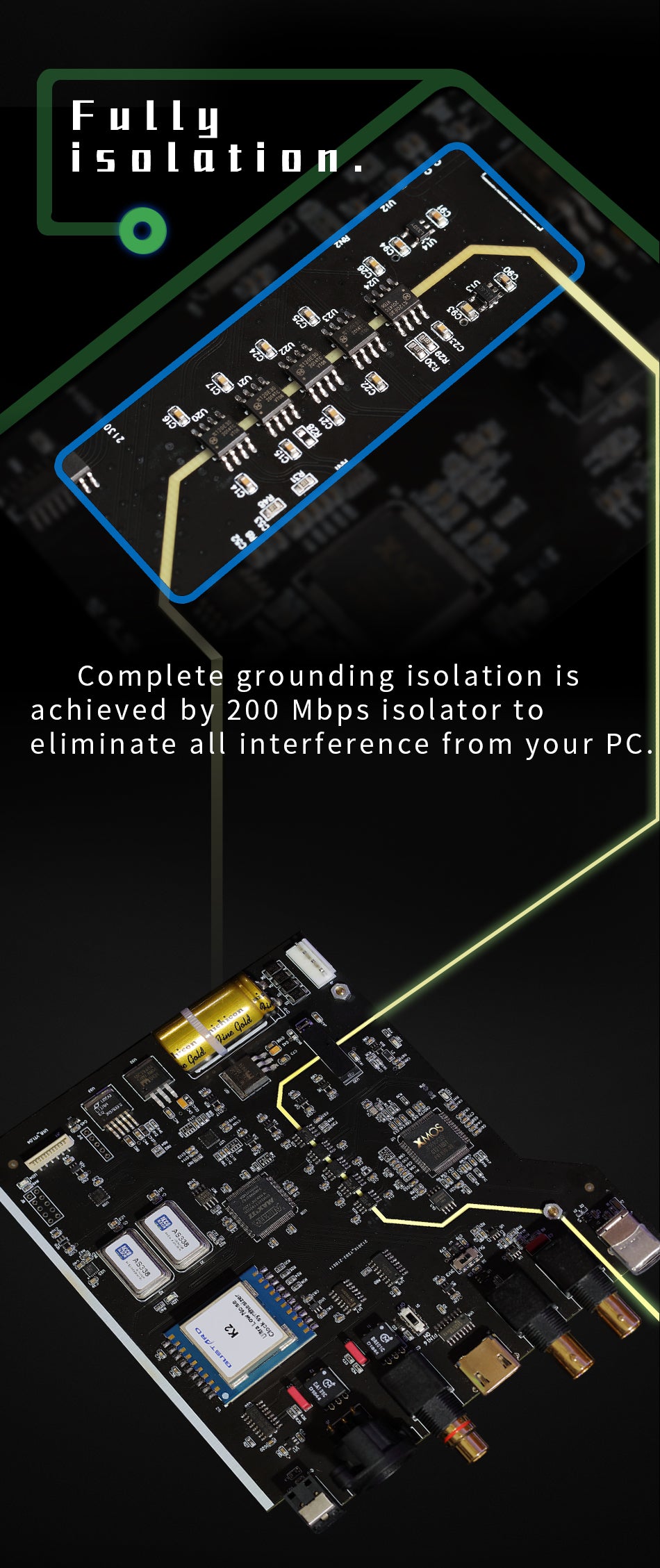

Fully isolation
Complete grounding isolation is achieved by 200 Mbps isolator to eliminate all interference from your PC

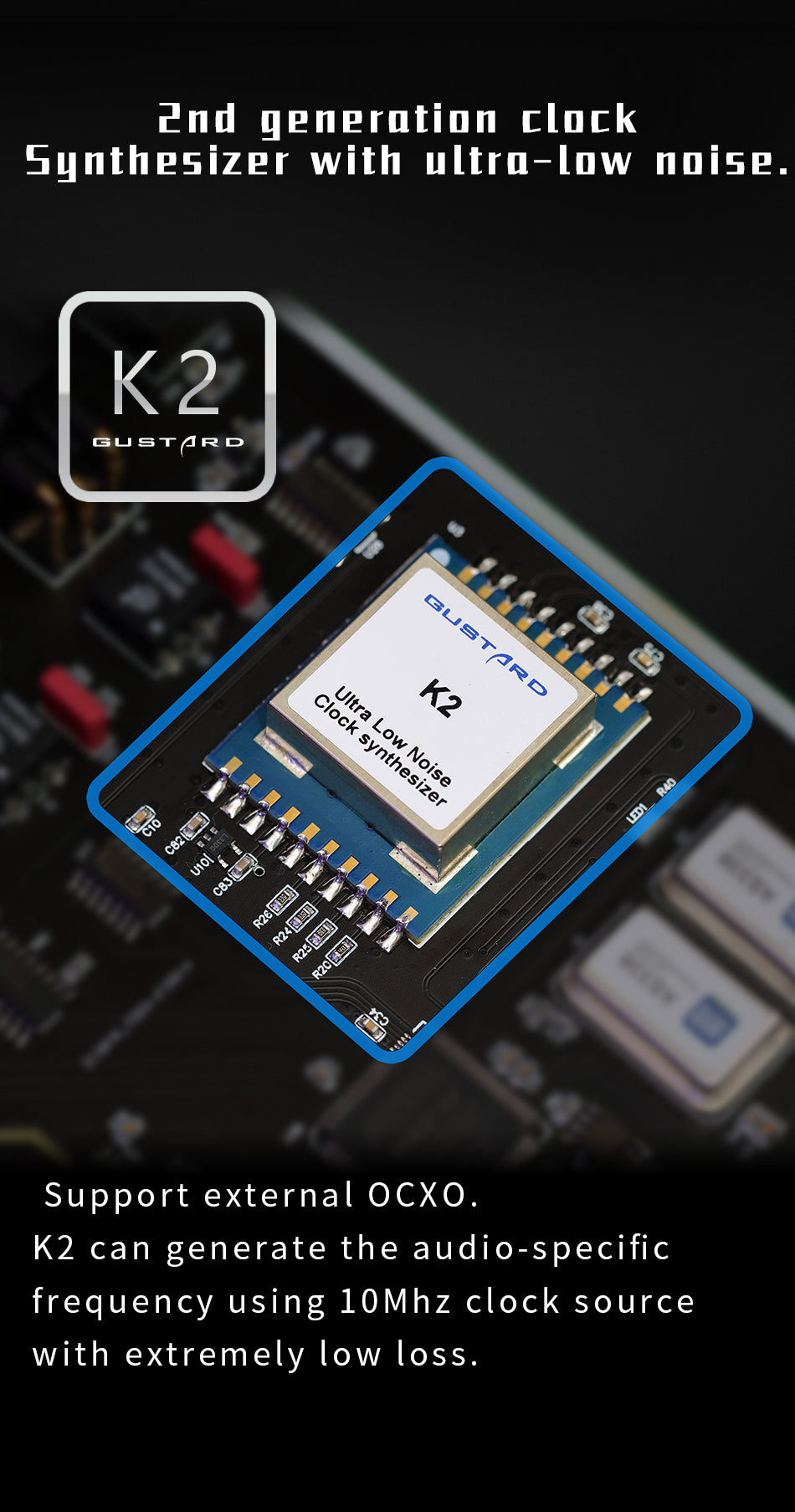

2nd generation clock Synthesizer with ultra-Low noise.

  • Support external OCXO Master Clock.
  • K2 can generate the audio-specific frequency using a 10Mhz clock source with extremely low loss.

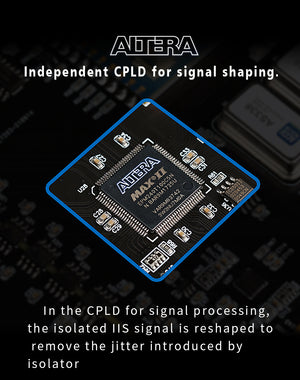

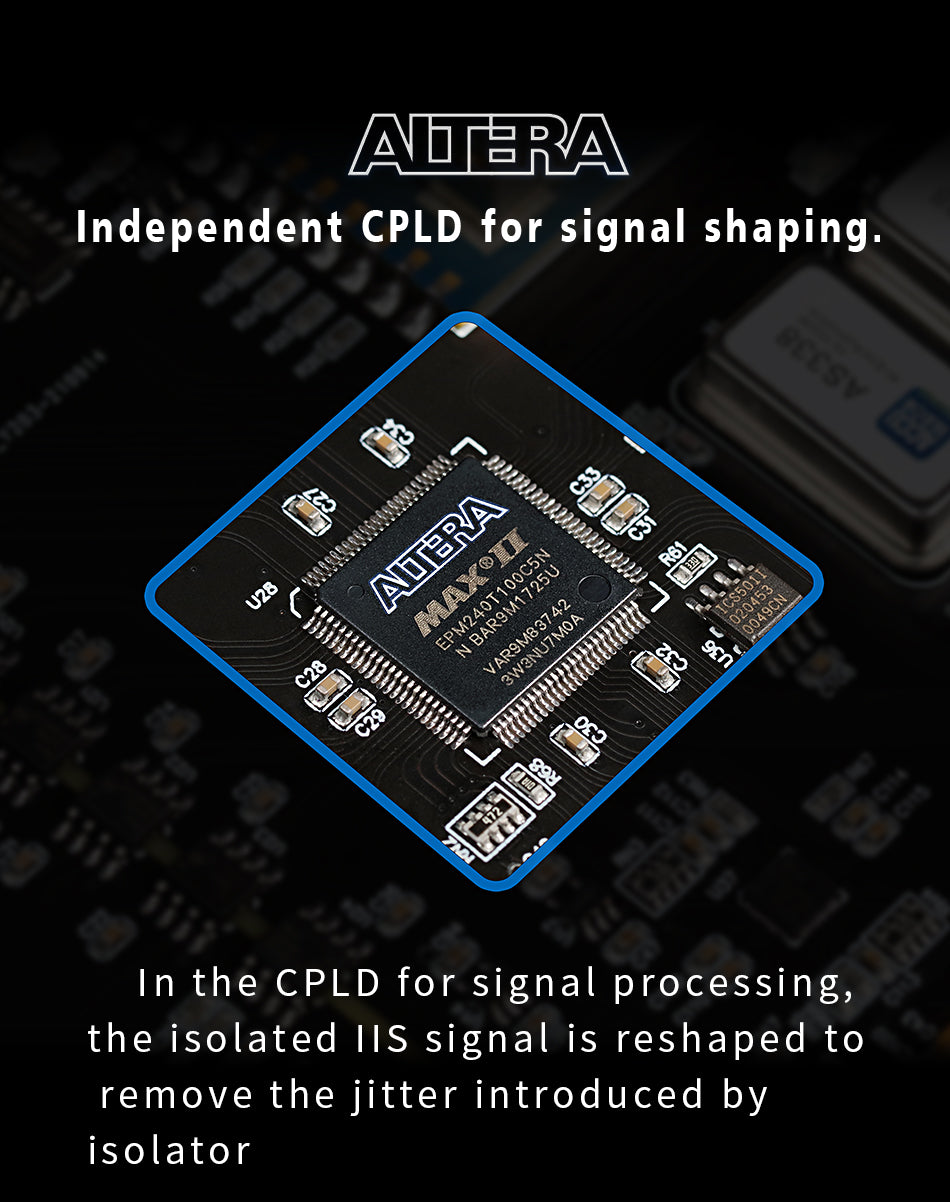

Independent CPLO for signal shaping
In the CPLD for signal processing, the isolated IIS signal is reshaped to remove the jitter introduced by the isolator

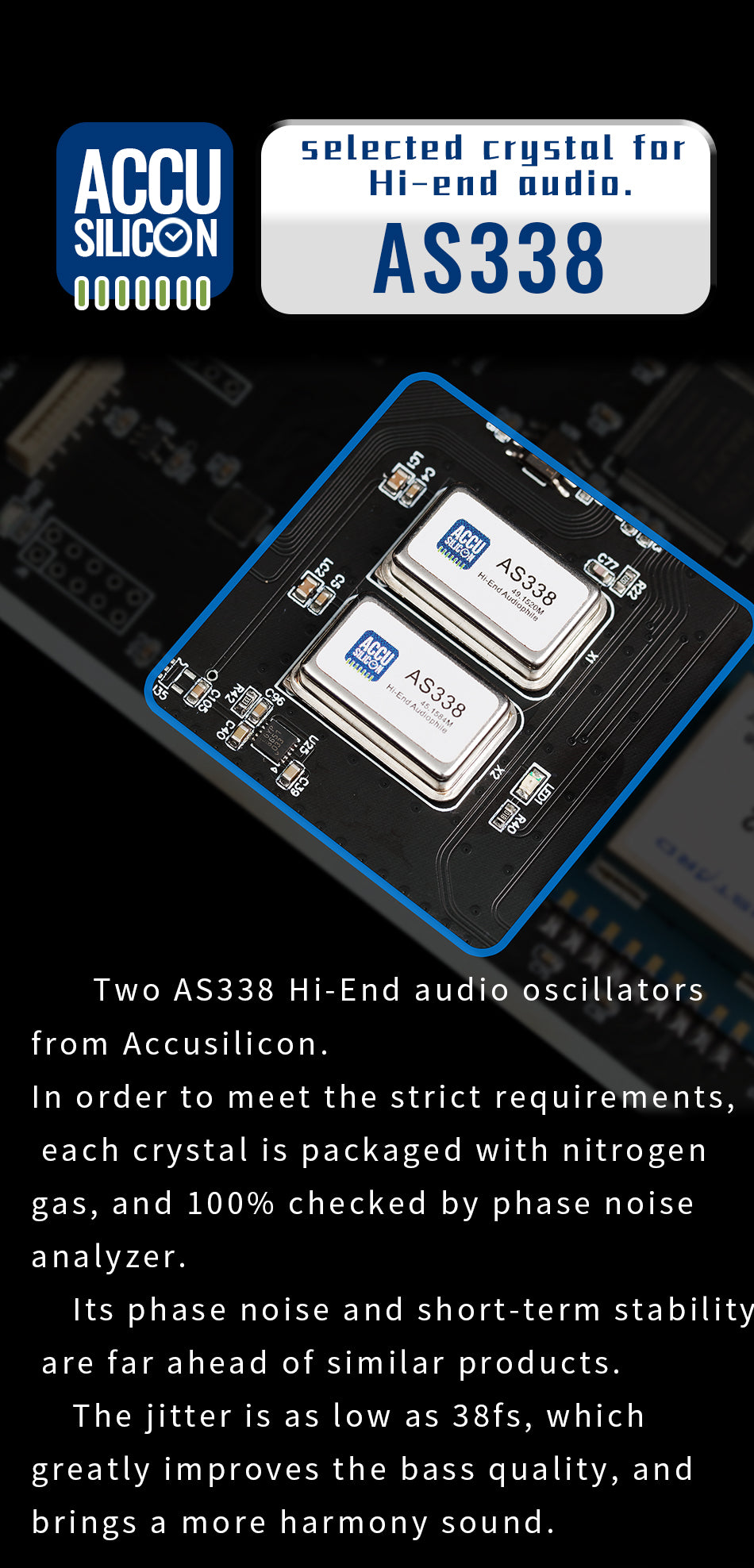

Selected crystal for Hi-end audio, AS338

  • Two AS338 Hi-End audio oscillators from Accusilicon.
  • In order to meet the strict requirements, each crystal is packaged with nitrogen gas, and 100% checked by a phase noise analyzer.
  • Its phase noise and short-term stability are far ahead of similar products.
  • The jitter is as low as 38fs, which greatly improves the bass quality, and brings a more natural sound.

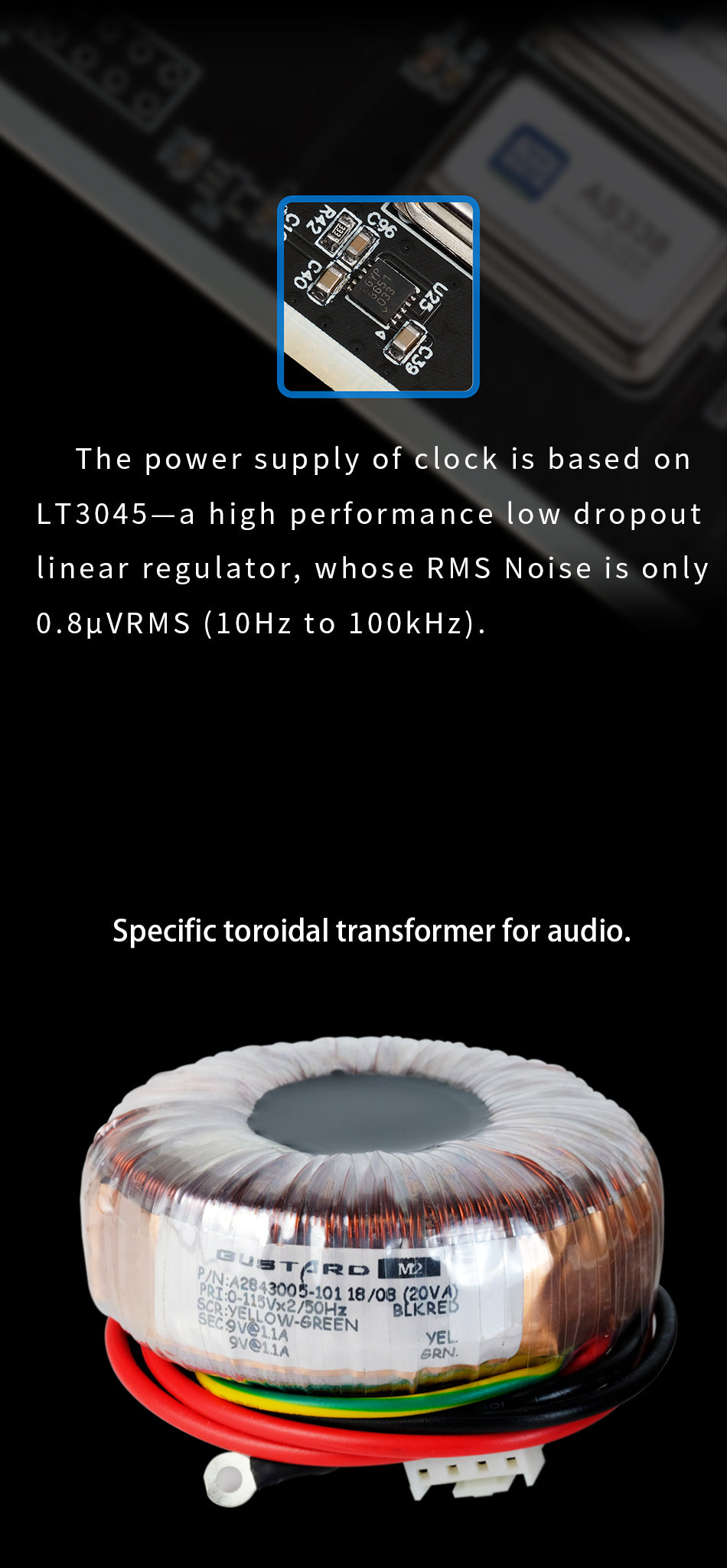

  • The power supply of clock is based on LT3045-a high-performance low dropout linear regulator, whose RMS Noise is only 0.8uVRMS (10Hz to 100kHz).




所有發燒產品從設計,生產和裝配及售後服務將會在香港每日夜晚9點開始...人手製作。
因為店主只能在晚上開始生產線,店主每晚只能生產有限的AfterDark.產品。

所有客戶現在可以通過訪問online shop下訂單,  並通過Visa卡 / Master卡/ PayPal/ Apple Pay/ Goggle Pay 在線直接付款, 接受一切國際訂單。AfterDark網上商店.



Type: DAC
